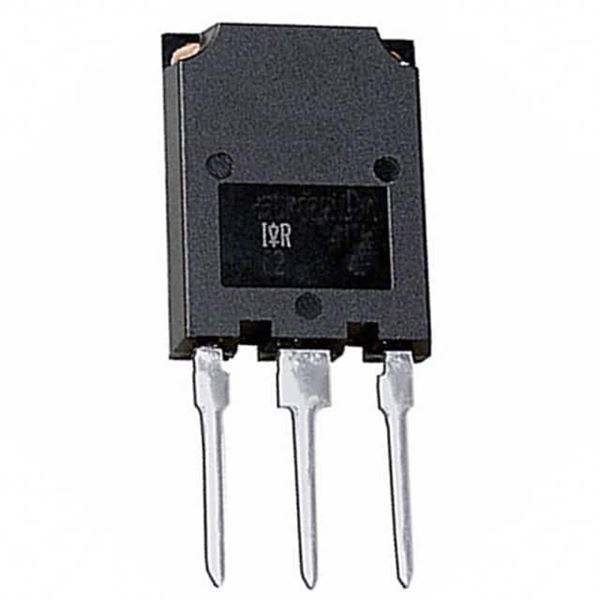

IRGPS60B120KD

SKU: 26097

Manufacturer: Infineon Technologies AG

Trans IGBT Chip N-CH 1200V 105A 595000mW 3-Pin(3+Tab) TO-274AA Tube

180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	1200
Typical Collector Emitter Saturation Voltage (V)	2.5
Maximum Continuous Collector Current (A)	105
Maximum Gate Emitter Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	595000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-274AA
Pin Count	3
Standard Package Method	TO-274AA
Terminal Form	Through Hole
Package Height	20.3
Package Length	15.6
Package Width	5
PCB changed	3
