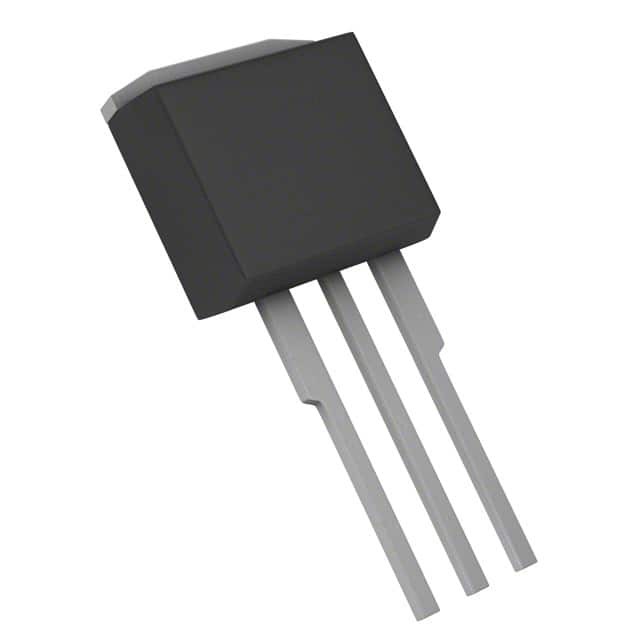

    IRFSL4127PBF

    SKU: 150769
    Manufacturer: Infineon Technologies AG
    Trans MOSFET N-CH 200V 72A 3-Pin(3+Tab) TO-262 Tube
    1040 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Process Technology HEXFET
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 200
    Maximum Gate Source Voltage (V) ±20
    Maximum Continuous Drain Current (A) 72
    Maximum Drain Source Resistance (mOhm) 22@10V
    Typical Gate Charge @ Vgs (nC) 100@10V
    Typical Gate Charge @ 10V (nC) 100
    Typical Input Capacitance @ Vds (pF) 5380@50V
    Maximum Power Dissipation (mW) 375000
    Typical Fall Time (ns) 22
    Typical Rise Time (ns) 18
    Typical Turn-Off Delay Time (ns) 56
    Typical Turn-On Delay Time (ns) 17
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Packing Method Tube
    Original Package TO-262
    Pin Count 3
    Standard Package Method I2PAK
    Terminal Form Through Hole
    Package Height 9.65(Max)
    Package Length 10.67(Max)
    Package Width 4.83(Max)
    PCB changed 3
    Tab Tab
