IRFS7730PBF

SKU: 61638

Manufacturer: Infineon Technologies AG

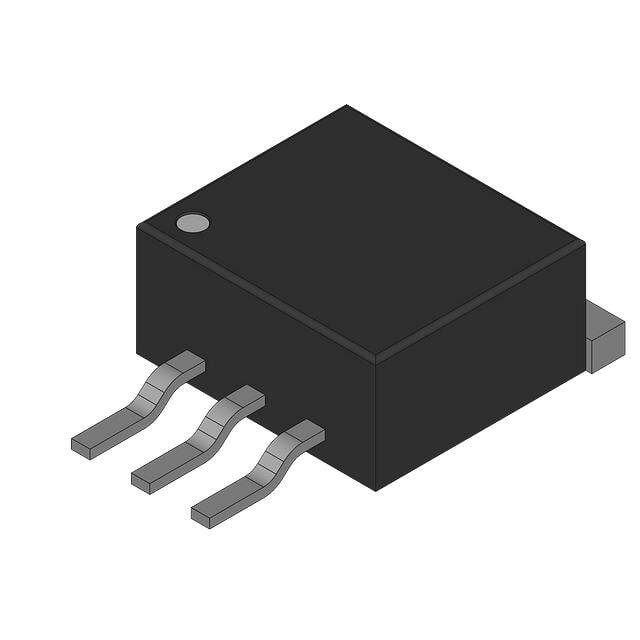

Trans MOSFET N-CH Si 75V 246A 3-Pin(2+Tab) D2PAK Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	HEXFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	75
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	3.7
Maximum Continuous Drain Current (A)	246
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	2.6@10V
Typical Gate Charge @ Vgs (nC)	271@10V
Typical Gate Charge @ 10V (nC)	271
Typical Input Capacitance @ Vds (pF)	13660@25V
Maximum Power Dissipation (mW)	375000
Typical Fall Time (ns)	115
Typical Rise Time (ns)	120
Typical Turn-Off Delay Time (ns)	180
Typical Turn-On Delay Time (ns)	21
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-263
Original Package	D2PAK
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	2
