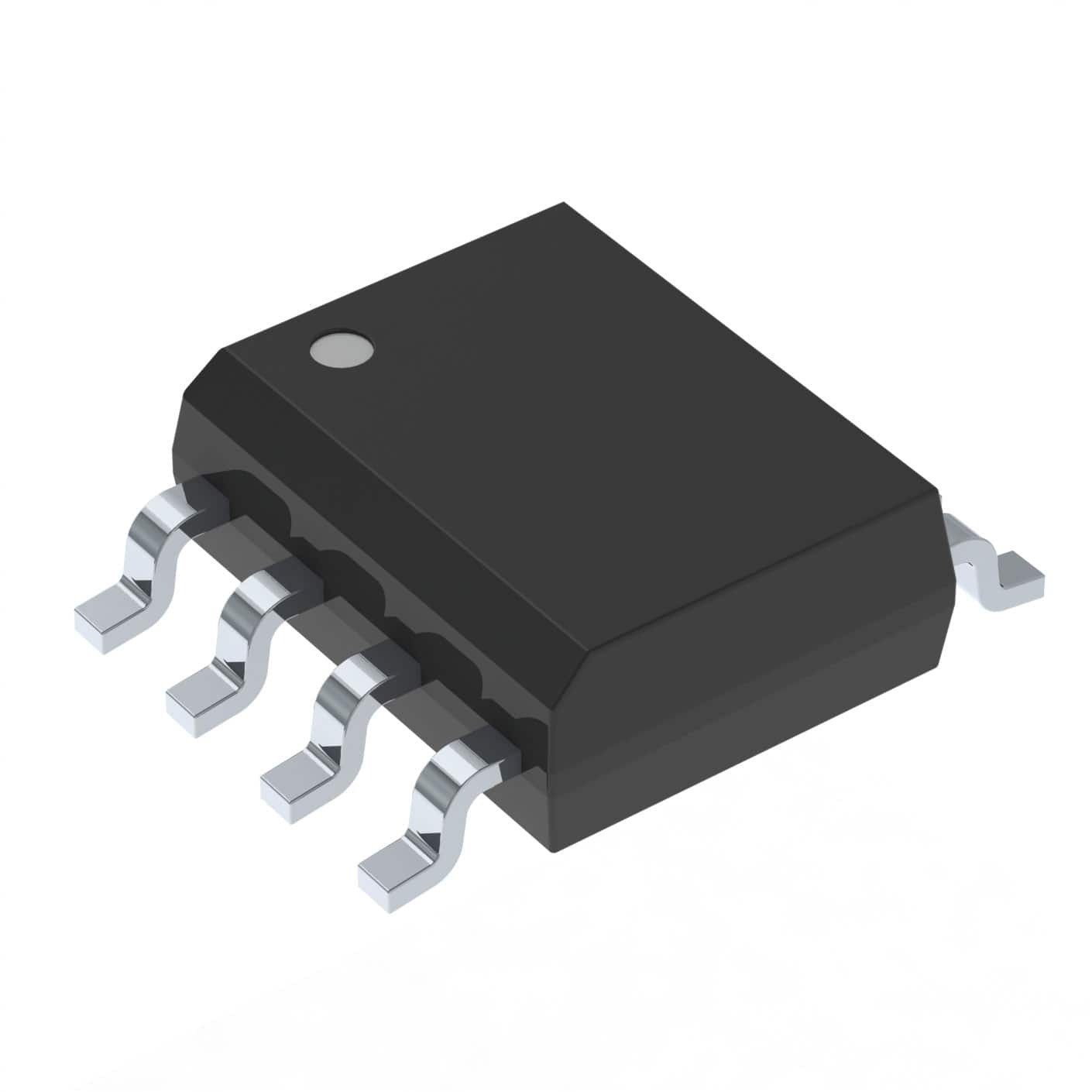

IRF7410TRPBF

SKU: 139428

Manufacturer: Infineon Technologies AG

Trans MOSFET P-CH Si 12V 16A 8-Pin SOIC T/R

29460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Quad Drain Triple Source
Process Technology	HEXFET
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	12
Maximum Gate Source Voltage (V)	±8
Maximum Gate Threshold Voltage (V)	0.9
Maximum Continuous Drain Current (A)	16
Maximum Drain Source Resistance (mOhm)	7@4.5V
Typical Gate Charge @ Vgs (nC)	91@4.5V
Typical Gate to Drain Charge (nC)	25
Typical Gate to Source Charge (nC)	18
Typical Reverse Recovery Charge (nC)	134000
Typical Input Capacitance @ Vds (pF)	8676@10V
Typical Output Capacitance (pF)	2344
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	200
Typical Rise Time (ns)	12
Typical Turn-Off Delay Time (ns)	271
Typical Turn-On Delay Time (ns)	13
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
