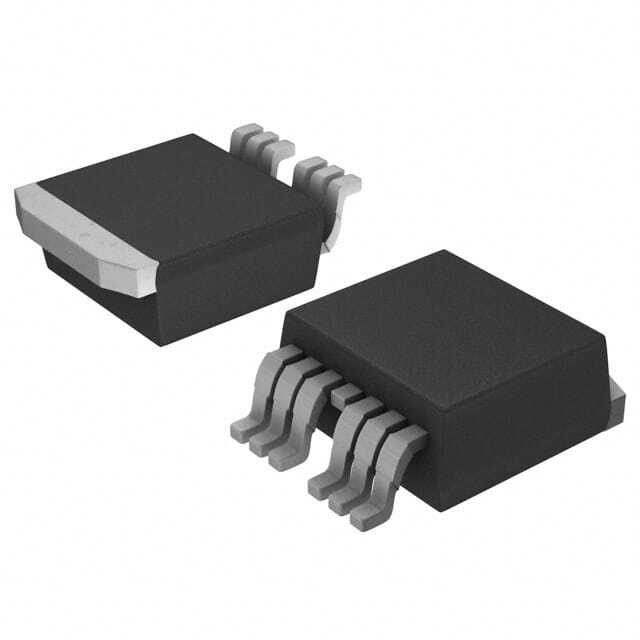

IRF3805S-7PPBF

SKU: 96806

Manufacturer: Infineon Technologies AG

IRF3805S-7PPBF Infineon Technologies AG Transistors MOSFETs N-CH Si 55V 240A 7-Pin(6+Tab) D2PAK Tube - Arrow.com

10400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Quint Source
Process Technology	HEXFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	55
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	55
Maximum Continuous Drain Current (A)	240
Maximum Drain Source Resistance (mOhm)	2.6@10V
Typical Gate Charge @ Vgs (nC)	130@10V
Typical Gate Charge @ 10V (nC)	130
Typical Input Capacitance @ Vds (pF)	7820@25V
Maximum Power Dissipation (mW)	300000
Typical Fall Time (ns)	52
Typical Rise Time (ns)	130
Typical Turn-Off Delay Time (ns)	80
Typical Turn-On Delay Time (ns)	23
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	160
Typical Gate Threshold Voltage (V)	10
Pin Count	7
Standard Package Method	TO-263
Original Package	D2PAK
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	6
