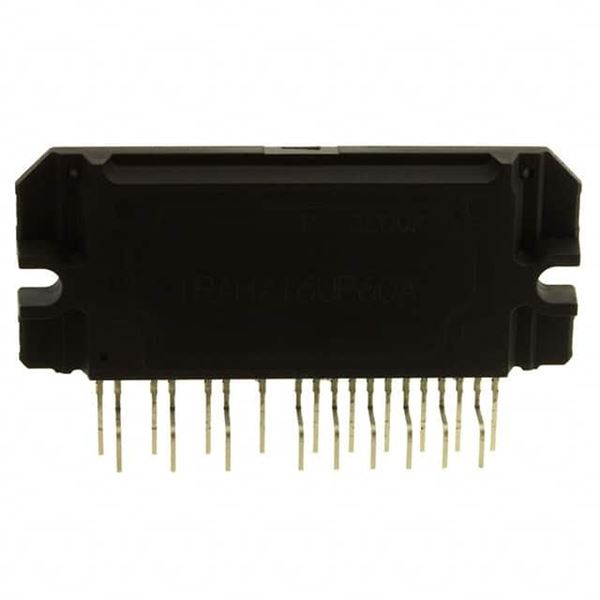

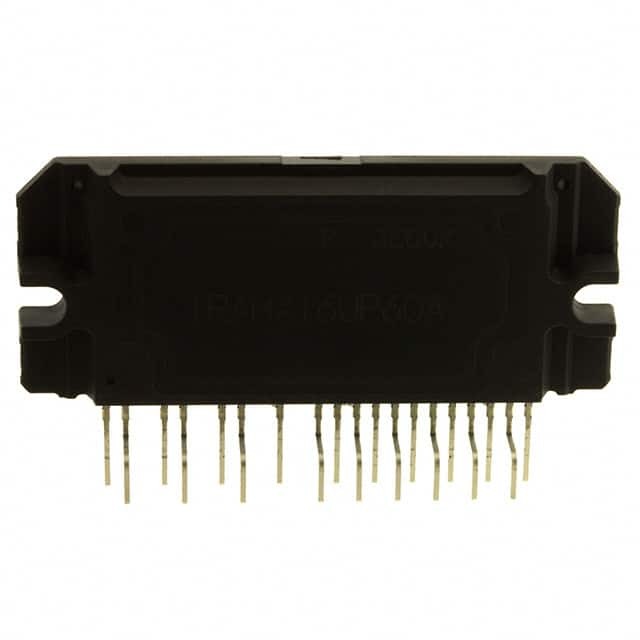

IRAMX16UP60A Infineon Technologies AG

IRAMX16UP60A

SKU: 11909

Manufacturer: Infineon Technologies AG

IPM IGBT 600V 16A 19-Pin SIP-2 Tube

Download sample

Request Free Samples

3690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	IGBT
Configuration	Hex
Number of Phases	Three
Protection Type	Over Current/Over Temperature/Short Circuit/Under Voltage
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	1.55
Maximum Continuous Collector Current (A)	16
Maximum Isolation Voltage (Vrms)	2000
Maximum Collector-Emitter Cut-Off Current (mA)	0.08
Maximum Power Dissipation (W)	31000
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	SIP-2
Pin Count	19
Terminal Form	Through Hole
Package Height	25.5
Package Length	62
Package Width	5.5
