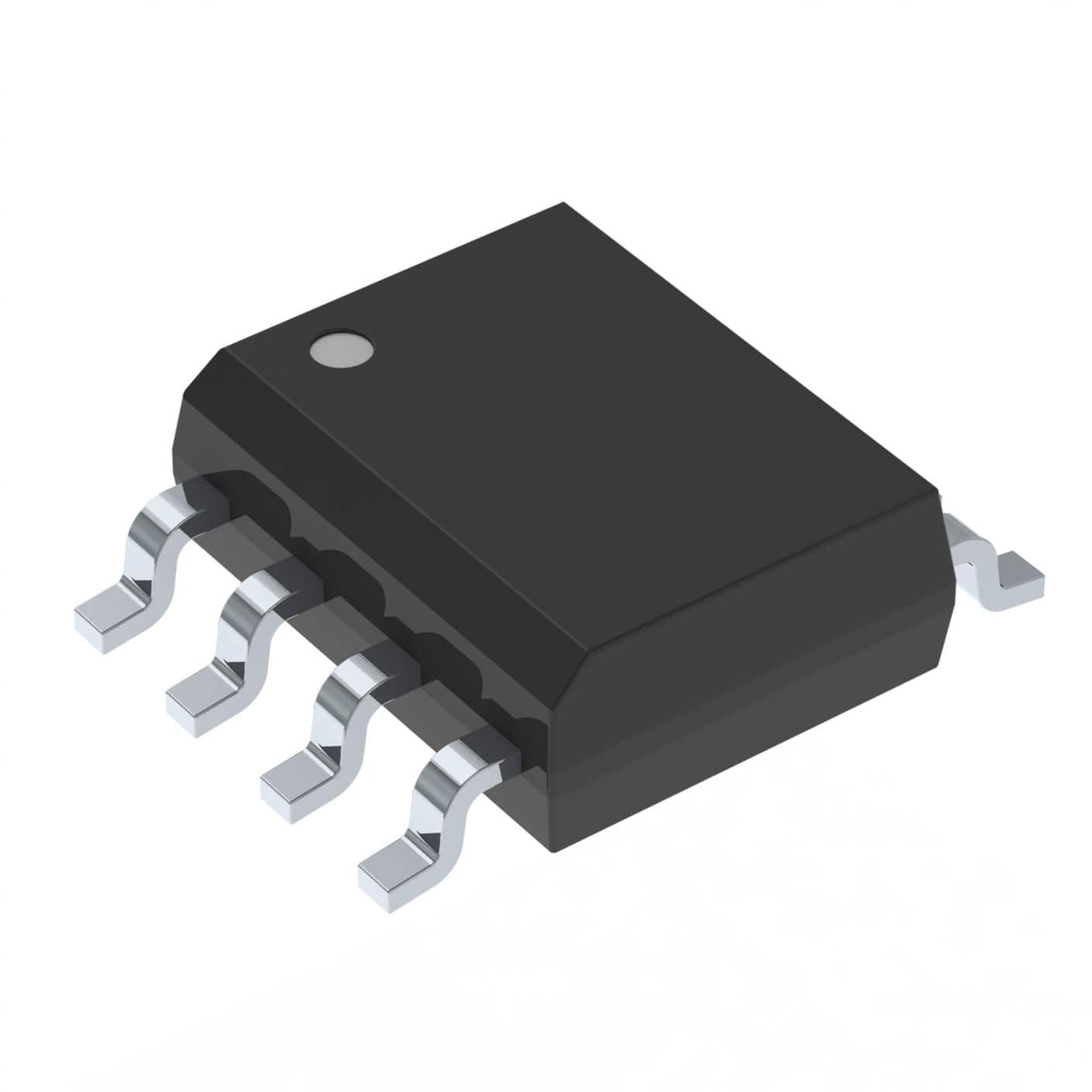

IR2153S

SKU: 110971

Manufacturer: Infineon Technologies AG

Driver 600V 0.4A 2-OUT High and Low Side Half Brdg Inv/Non-Inv 8-Pin SOIC N T/R

17390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Inverting
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Number of Outputs	2
Maximum Rise Time (ns)	150
Maximum Fall Time (ns)	100
Maximum Operating Frequency (kHz)	106
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	16.8
Maximum Supply Current (mA)	5
Reference Voltage (V)	600(Max)
Peak Output Current (A)	0.4(Min)
Maximum Power Dissipation (mW)	625
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOIC N
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
