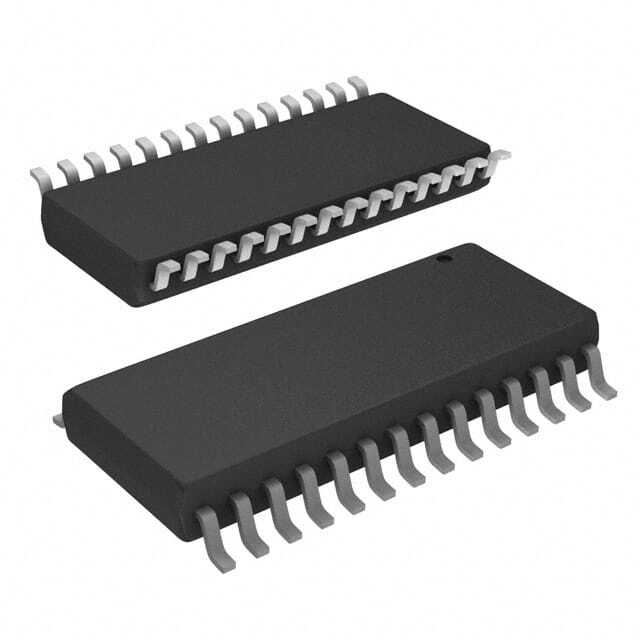

IR2136S

SKU: 11903

Manufacturer: Infineon Technologies AG

Driver 600V 6-OUT High and Low Side 3-Phase Brdg Inv 28-Pin SOIC W

3540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Inverting
Bridge Type	3-Phase Bridge
Number of Drivers	6
High and Low Sides Dependency	Independent
Type	MOSFET
Number of Outputs	6
Maximum Rise Time (ns)	190
Maximum Fall Time (ns)	75
Input Logic Compatibility	3.3V(Min)
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	20
Typical Input Low Threshold Voltage (V)	8.2
Typical Input High Threshold Voltage (V)	8.9
Reference Voltage (V)	600(Max)
Maximum Power Dissipation (mW)	1600
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Undervoltage Lockout
Maximum Turn-On Delay Time (ns)	550
Maximum Turn-Off Delay Time (ns)	550
Original Package	SOIC W
Pin Count	28
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	18.1(Max)
Package Width	7.6(Max)
PCB changed	28
