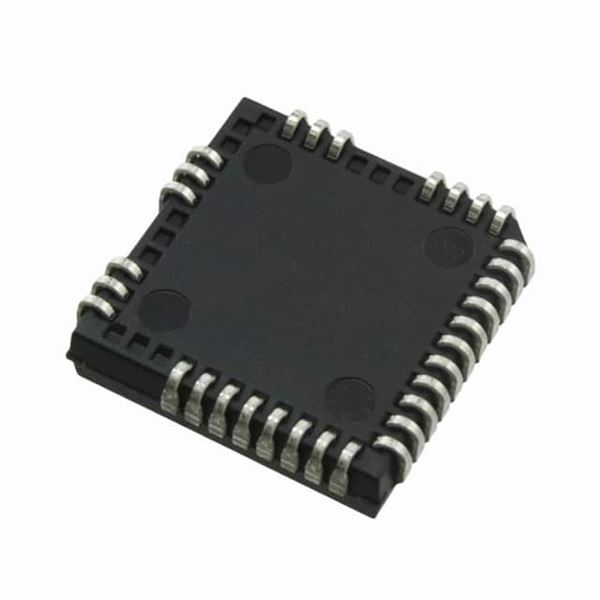

IR2133JTR

SKU: 89715

Manufacturer: Infineon Technologies AG

Driver 600V 0.5A 6-OUT High and Low Side 3-Phase Brdg Inv 32-Pin PLCC T/R

2430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Inverting
Bridge Type	3-Phase Bridge
Number of Drivers	6
High and Low Sides Dependency	Independent
Type	MOSFET
Number of Outputs	6
Maximum Rise Time (ns)	150
Maximum Fall Time (ns)	70
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	20
Typical Input Low Threshold Voltage (V)	8.2
Typical Input High Threshold Voltage (V)	8.6
Peak Output Current (A)	0.5(Typ)
Maximum Power Dissipation (mW)	2000
Operating Temperature-Max	125
Special Features	Undervoltage Lockout
Maximum Turn-On Delay Time (ns)	1000
Maximum Turn-Off Delay Time (ns)	950
Packing Method	Tape and Reel
Original Package	PLCC
Pin Count	32
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.69(Min)
Package Length	16.66(Max)
Package Width	16.66(Max)
PCB changed	32
