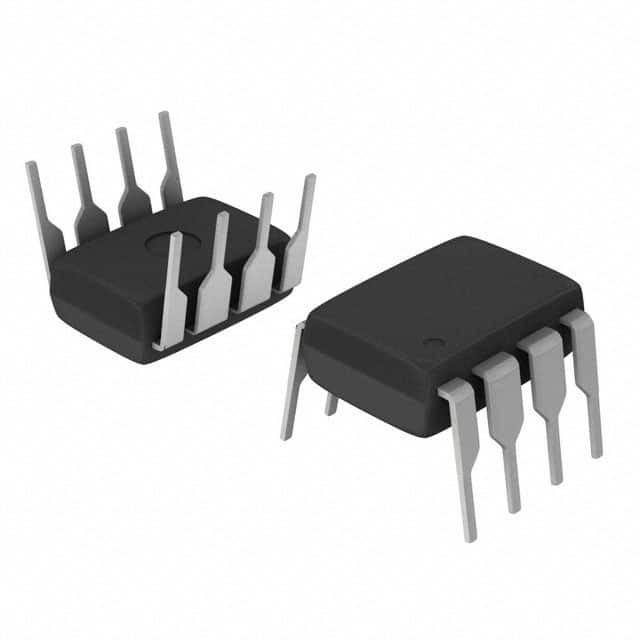

IR2125

SKU: 82646

Manufacturer: Infineon Technologies AG

Driver 500V 3.3A 1-OUT High Side/Low Side Non-Inv 8-Pin PDIP T/R

2670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	Low Side
Driver Configuration	Non-Inverting
Number of Drivers	1
High and Low Sides Dependency	Synchronous
Type	IGBT
Number of Outputs	1
Maximum Rise Time (ns)	60
Maximum Fall Time (ns)	35
Maximum Propagation Delay Time (ns)	270
Input Logic Compatibility	LSTTL
Operating Supply Voltage-Min (V)	0
Operating Supply Voltage-Max (V)	18
Maximum Supply Current (mA)	1.2
Typical Input Low Threshold Voltage (V)	8
Typical Input High Threshold Voltage (V)	8.9
Reference Voltage (V)	500(Max)
Peak Output Current (A)	3.3(Typ)
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Undervoltage Lockout
Packing Method	Tape and Reel
Original Package	PDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.33(Max) - 0.39(Min)
Package Length	10.92(Max)
Package Width	7.11(Max)
PCB changed	8
