IR2113

SKU: 54600

Manufacturer: Infineon Technologies AG

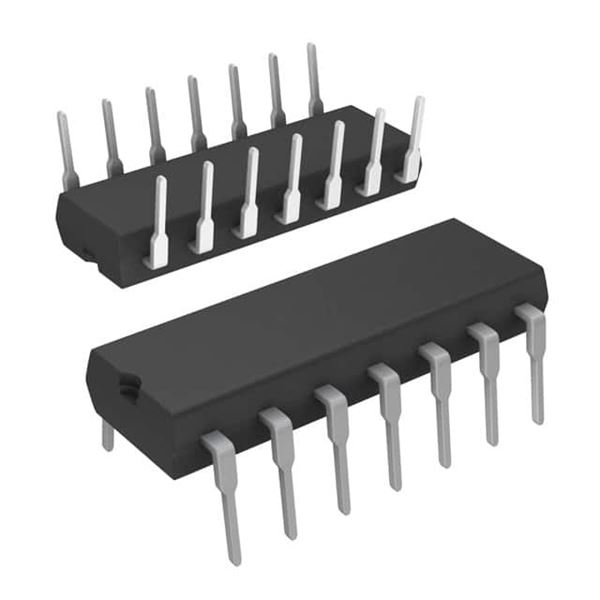

Driver 2-OUT High and Low Side 14-Pin PDIP Tube

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	IGBT
Number of Outputs	2
Maximum Rise Time (ns)	35
Maximum Fall Time (ns)	25
Maximum Propagation Delay Time (ns)	150
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	20
Typical Input Low Threshold Voltage (V)	8.2
Typical Input High Threshold Voltage (V)	8.5
Maximum Power Dissipation (mW)	1600
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Maximum Turn-On Delay Time (ns)	20
Maximum Turn-Off Delay Time (ns)	20
Packing Method	Tube
Original Package	PDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.33(Max) - 0.39(Min)
Package Length	20.19(Max)
Package Width	7.11(Max)
PCB changed	14
