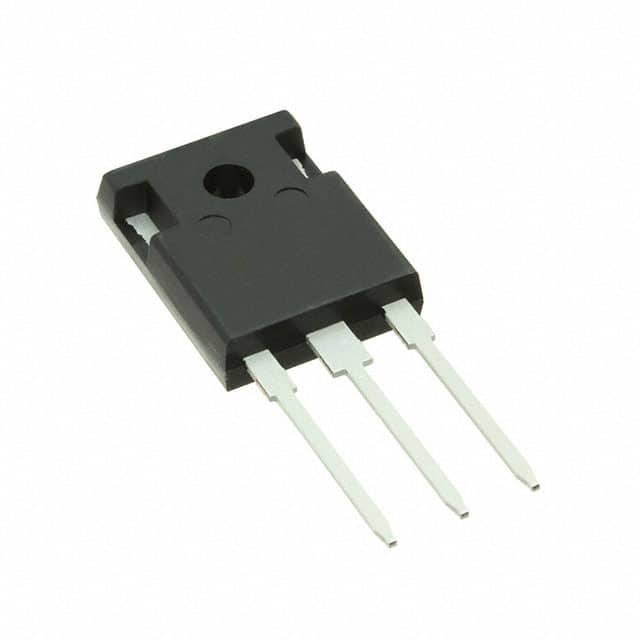

IPW60R055CFD7

SKU: 146412

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 600V 38A 3-Pin(3+Tab) TO-247 Tube

770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	20
Maximum Continuous Drain Current (A)	38
Maximum Drain Source Resistance (mOhm)	55@10V
Typical Gate Charge @ Vgs (nC)	79@10V
Typical Gate Charge @ 10V (nC)	79
Typical Input Capacitance @ Vds (pF)	3194@400V
Maximum Power Dissipation (mW)	178000
Typical Fall Time (ns)	5
Typical Rise Time (ns)	27
Typical Turn-Off Delay Time (ns)	98
Typical Turn-On Delay Time (ns)	26
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Terminal Form	Through Hole
Package Height	21
Package Length	15.8
Package Width	5
PCB changed	3
