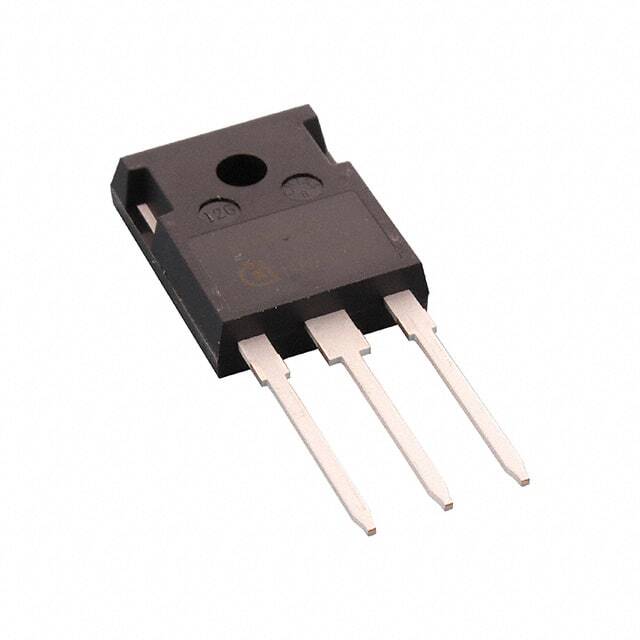

IPW60R018CFD7

SKU: 96796

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 600V 101A 3-Pin(3+Tab) TO-247 Tube

1900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	4.5
Maximum Continuous Drain Current (A)	101
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	18@10V
Typical Gate Charge @ Vgs (nC)	251@10V
Typical Gate Charge @ 10V (nC)	251
Typical Input Capacitance @ Vds (pF)	9901@400V
Maximum Power Dissipation (mW)	416000
Typical Fall Time (ns)	8
Typical Rise Time (ns)	35
Typical Turn-Off Delay Time (ns)	220
Typical Turn-On Delay Time (ns)	80
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Terminal Form	Through Hole
Package Height	21.1(Max)
Package Length	16.13(Max)
Package Width	5.21(Max)
PCB changed	3
