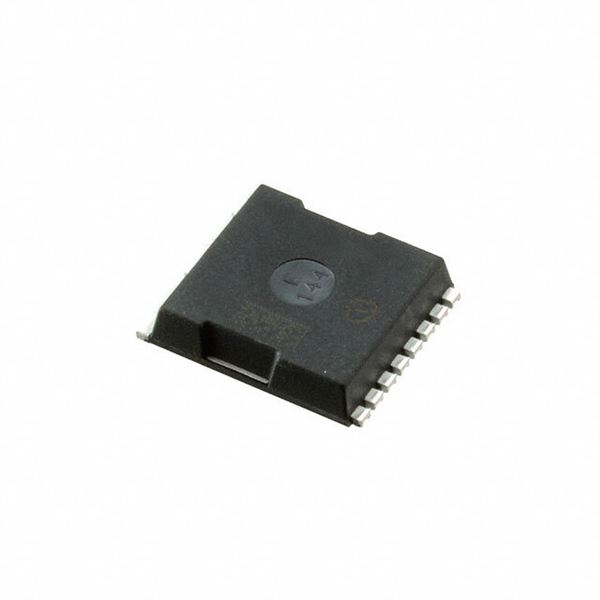

IPT059N15N3

SKU: 82642

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 150V 155A Automotive 9-Pin(8+Tab) HSOF T/R

1830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single Seven Source
Process Technology	OptiMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	150
Maximum Gate Source Voltage (V)	20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	155
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	5.9@10V
Typical Gate Charge @ Vgs (nC)	69@10V
Typical Gate Charge @ 10V (nC)	69
Typical Input Capacitance @ Vds (pF)	5400@75V
Maximum Power Dissipation (mW)	375000
Typical Fall Time (ns)	14
Typical Rise Time (ns)	35
Typical Turn-Off Delay Time (ns)	46
Typical Turn-On Delay Time (ns)	25
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	9
Standard Package Method	HSOF
Original Package	HSOF
Terminal Form	Surface Mount
Package Height	2.3
Package Length	9.9
Package Width	10.38
PCB changed	8
Tab	Tab
