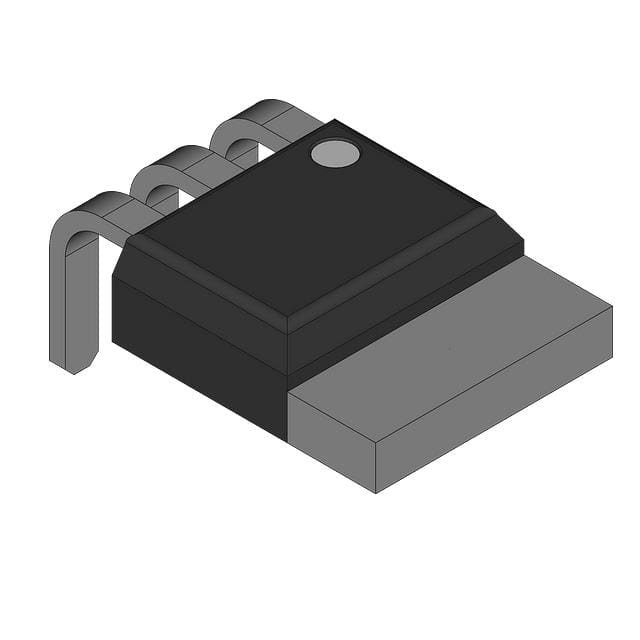

IPI90R800C3

SKU: 19072

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 900V 6.9A 3-Pin(3+Tab) TO-262 Tube

2810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	900
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	6.9
Maximum Drain Source Resistance (mOhm)	800@10V
Typical Gate Charge @ Vgs (nC)	42@10V
Typical Gate Charge @ 10V (nC)	42
Typical Input Capacitance @ Vds (pF)	1100@100V
Maximum Power Dissipation (mW)	104000
Typical Fall Time (ns)	32
Typical Rise Time (ns)	20
Typical Turn-Off Delay Time (ns)	400
Typical Turn-On Delay Time (ns)	70
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-262
Pin Count	3
Standard Package Method	I2PAK
Terminal Form	Through Hole
Package Height	9.25
Package Length	10
Package Width	4.4
PCB changed	3
Tab	Tab
