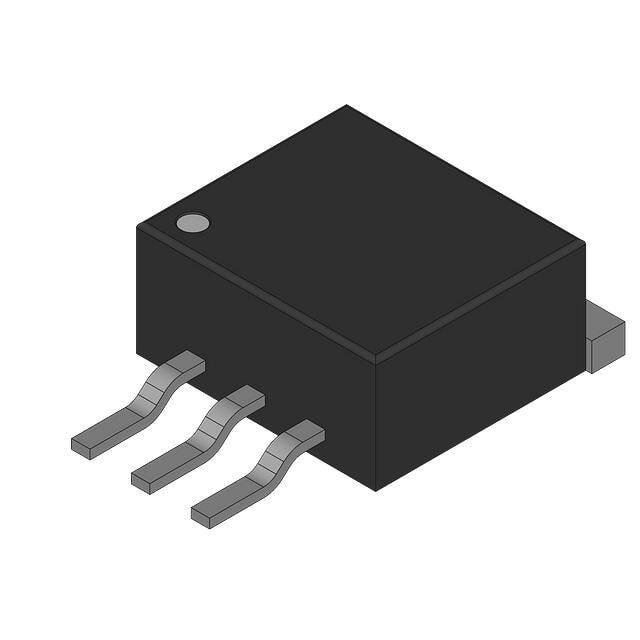

    IPD80R1K4P7

    SKU: 118070
    Manufacturer: Infineon Technologies AG
    Trans MOSFET N-CH 800V 4A 3-Pin(2+Tab) DPAK T/R
    2600 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Process Technology CoolMOS P7
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 800
    Maximum Gate Source Voltage (V) 20
    Maximum Gate Threshold Voltage (V) 3.5
    Maximum Continuous Drain Current (A) 4
    Maximum Gate Source Leakage Current (nA) 1000
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 1400@10V
    Typical Gate Charge @ Vgs (nC) 10@10V
    Typical Gate Charge @ 10V (nC) 10
    Typical Input Capacitance @ Vds (pF) 250@500V
    Maximum Power Dissipation (mW) 32000
    Typical Fall Time (ns) 20
    Typical Rise Time (ns) 8
    Typical Turn-Off Delay Time (ns) 40
    Typical Turn-On Delay Time (ns) 10
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package DPAK
    Pin Count 3
    Terminal Form Surface Mount
    Package Height 2.41(Max)
    Package Length 6.73(Max)
    Package Width 6.22(Max)
    PCB changed 2
