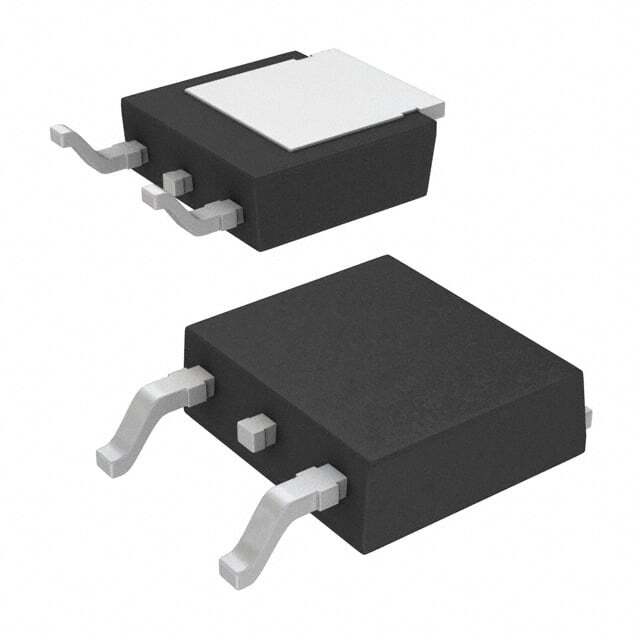

IPD22N08S2L50

SKU: 75594

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 75V 27A Automotive 3-Pin(2+Tab) DPAK T/R

2570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Process Technology	OptiMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	75
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	27
Maximum Drain Source Resistance (mOhm)	50@10V
Typical Gate Charge @ Vgs (nC)	21@10V
Typical Gate Charge @ 10V (nC)	21
Typical Input Capacitance @ Vds (pF)	630@25V
Maximum Power Dissipation (mW)	75000
Typical Fall Time (ns)	10
Typical Rise Time (ns)	20
Typical Turn-Off Delay Time (ns)	26
Typical Turn-On Delay Time (ns)	6
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.3
Package Length	6.5
Package Width	6.22
PCB changed	2
