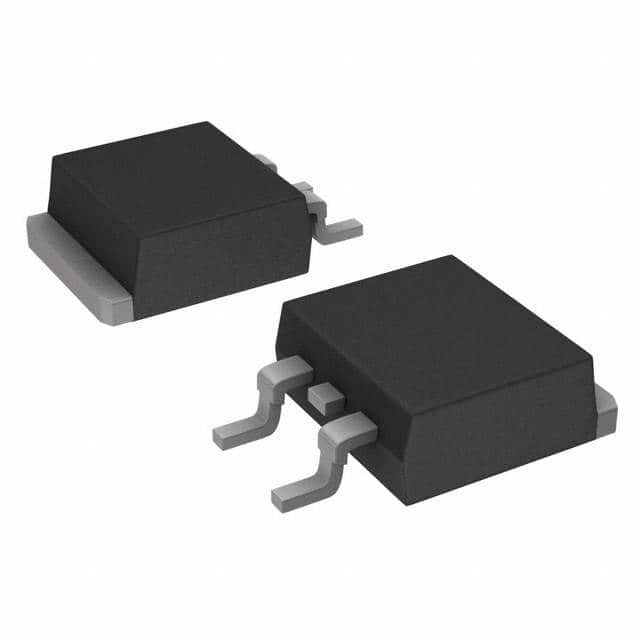

    IPB107N20N3G

    SKU: 89698
    Manufacturer: Infineon Technologies AG
    Trans MOSFET N-CH 200V 88A 3-Pin(2+Tab) D2PAK T/R
    14410 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Process Technology OptiMOS
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 200
    Maximum Gate Source Voltage (V) ±20
    Maximum Continuous Drain Current (A) 88
    Maximum Drain Source Resistance (mOhm) 10.7@10V
    Typical Gate Charge @ Vgs (nC) 65@10V
    Typical Gate Charge @ 10V (nC) 65
    Typical Input Capacitance @ Vds (pF) 5340@100V
    Maximum Power Dissipation (mW) 300000
    Typical Fall Time (ns) 11
    Typical Rise Time (ns) 26
    Typical Turn-Off Delay Time (ns) 41
    Typical Turn-On Delay Time (ns) 18
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Packing Method Tape and Reel
    Pin Count 3
    Standard Package Method TO-263
    Original Package D2PAK
    Terminal Form Surface Mount
    Package Height 4.57(Max)
    Package Length 10.31(Max)
    Package Width 9.45(Max)
    PCB changed 2
