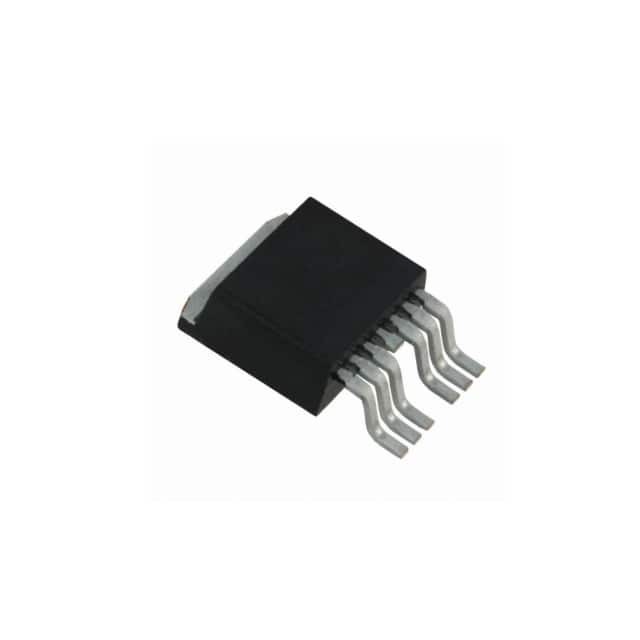

IPB015N08N5

SKU: 26042

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 80V 180A Automotive 7-Pin(6+Tab) D2PAK T/R

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single Quint Source
Process Technology	OptiMOS 5
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	80
Maximum Gate Source Voltage (V)	20
Maximum Gate Threshold Voltage (V)	3.8
Maximum Continuous Drain Current (A)	180
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	1.5@10V
Typical Gate Charge @ Vgs (nC)	178@10V
Typical Gate Charge @ 10V (nC)	178
Typical Input Capacitance @ Vds (pF)	13000@40V
Maximum Power Dissipation (mW)	375000
Typical Fall Time (ns)	28
Typical Rise Time (ns)	32
Typical Turn-Off Delay Time (ns)	83
Typical Turn-On Delay Time (ns)	33
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	D2PAK
Pin Count	7
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.57(Max)
Package Length	10.31(Max)
Package Width	9.45(Max)
PCB changed	6
Tab	Tab
