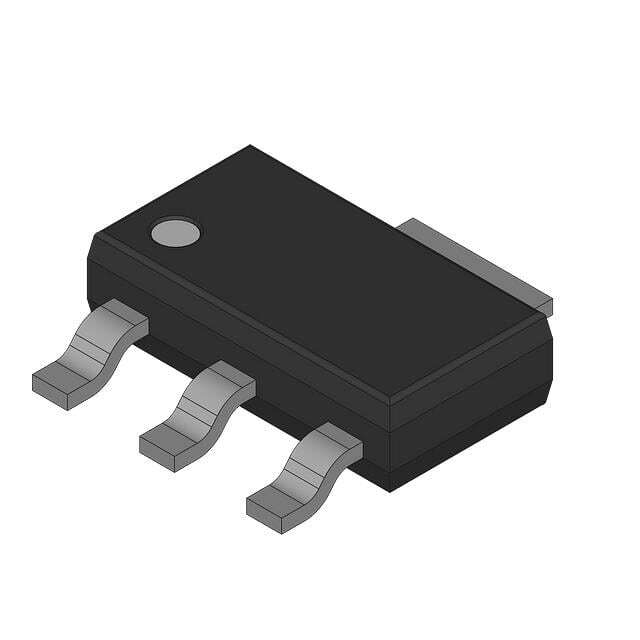

IFX1117MEV33

SKU: 118044

Manufacturer: Infineon Technologies AG

LDO Regulator Pos 3.3V 1A 4-Pin(3+Tab) SOT-223 T/R

1030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	1
Minimum Input Voltage (V)	4.55
Maximum Input Voltage (V)	15
Maximum Dropout Voltage @ Current (V)	1.2@800mA
Line Regulation	6mV
Load Regulation	10mV
Junction to Ambient	164K/W
Junction to Case	4K/W
Special Features	Short Circuit Protection
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT-223
Terminal Form	Surface Mount
Package Height	1.6
Package Length	6.5
Package Width	3.5
PCB changed	3
Tab	Tab
