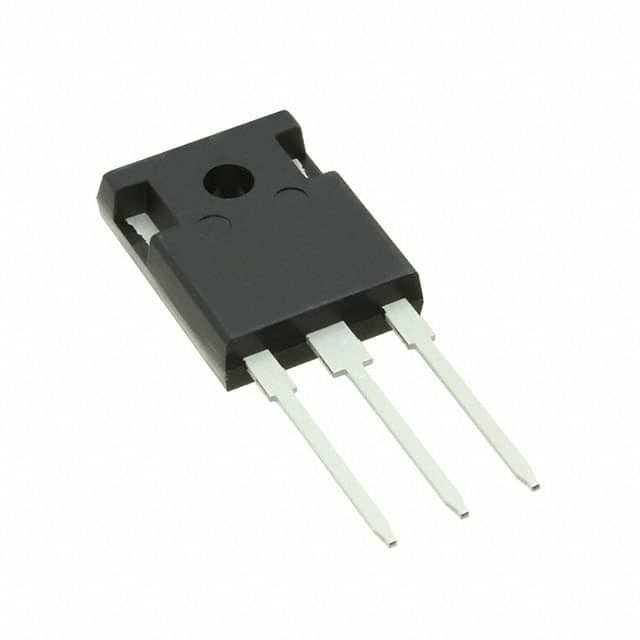

IDW75E60

SKU: 11854

Manufacturer: Infineon Technologies AG

Rectifier Diode Switching 600V 120A 121ns 3-Pin(3+Tab) TO-247 Tube

1360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	120
Peak Non-Repetitive Surge Current (A)	220
Peak Forward Voltage (V)	2@75A
Peak Reverse Current (uA)	40
Maximum Power Dissipation (mW)	300000
Peak Reverse Recovery Time (ns)	121(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	175
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.95
Package Length	15.9
Package Width	5.3
PCB changed	3
Tab	Tab
