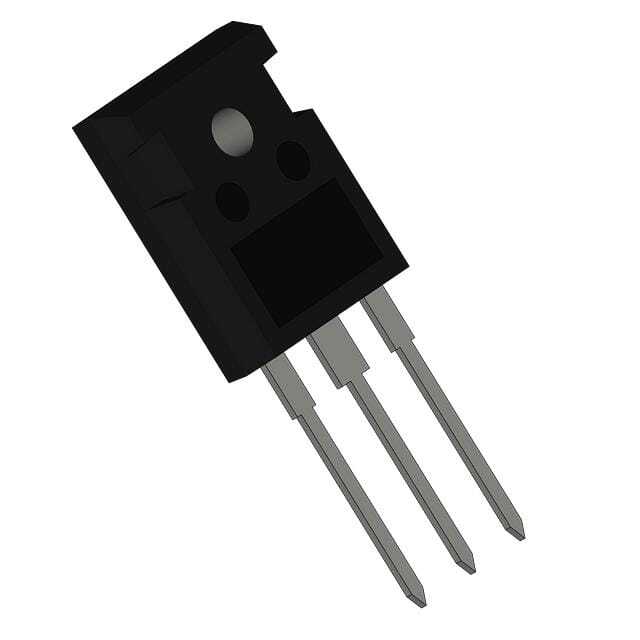

IDW40E65D2

SKU: 89673

Manufacturer: Infineon Technologies AG

Rectifier Diode Switching 650V 80A 75ns 3-Pin(3+Tab) TO-247 Tube

900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	650
Maximum Continuous Forward Current (A)	80
Peak Non-Repetitive Surge Current (A)	250
Peak Forward Voltage (V)	2.3@40A
Peak Reverse Current (uA)	40
Maximum Power Dissipation (mW)	180000
Peak Reverse Recovery Time (ns)	75
Operating Temperature-Min	-40
Operating Temperature-Max	175
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21.1(Max)
Package Length	16.13(Max)
Package Width	5.21(Max)
PCB changed	3
Tab	Tab
