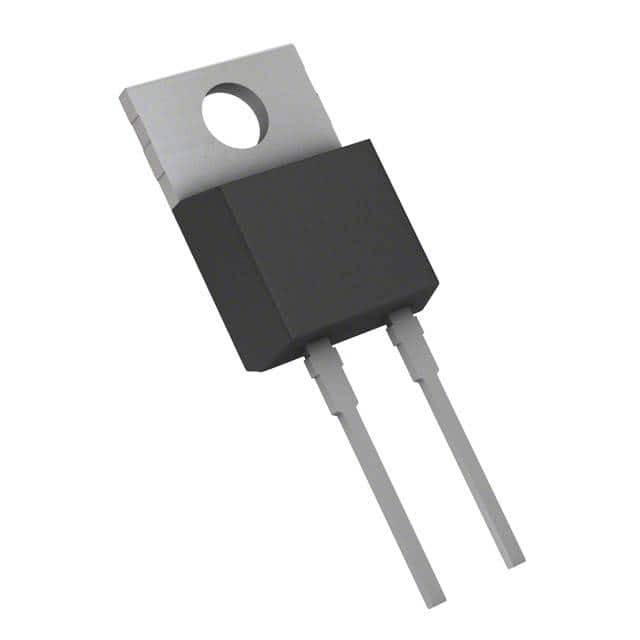

IDH12G65C6

SKU: 139379

Manufacturer: Infineon Technologies AG

Rectifier Diode Schottky SiC 650V 27A 2-Pin(2+Tab) TO-220 Tube

640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Schottky Diode
Body Material	SiC
Maximum DC Reverse Voltage (V)	650
Configuration	Single
Peak Reverse Repetitive Voltage (V)	650
Maximum Continuous Forward Current (A)	27
Peak Non-Repetitive Surge Current (A)	64
Peak Forward Voltage (V)	1.35@12A
Peak Reverse Current (uA)	40@420V
Maximum Diode Capacitance (pF)	594(Typ)
Maximum Power Dissipation (mW)	81000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Original Package	TO-220
Pin Count	2
Terminal Form	Through Hole
Package Height	9.25
Package Length	10
Package Width	4.4
PCB changed	2
