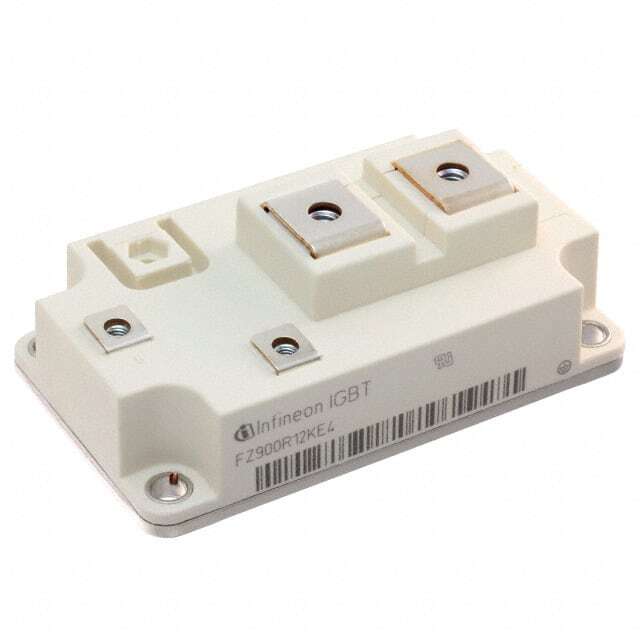

FZ900R12KE4

SKU: 103701

Manufacturer: Infineon Technologies AG

Trans IGBT Module N-CH 1200V 900A 4300000mW 4-Pin 62MM-2 Tray

1570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Typical Collector Emitter Saturation Voltage (V)	1.75
Collector-Emitter Voltage-Max (V)	1200
Maximum Power Dissipation (mW)	4300000
Maximum Gate Emitter Voltage (V)	±20
Maximum Continuous Collector Current (A)	900
Maximum Gate Emitter Leakage Current (uA)	0.4
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tray
Original Package	62MM-2
Pin Count	4
Terminal Form	Screw
Package Height	36.5
Package Length	106
Package Width	61.4
