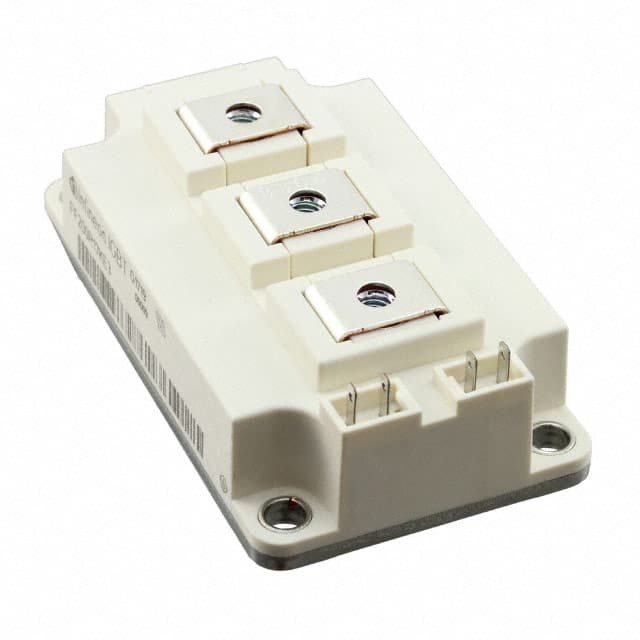

FF200R06KE3

SKU: 146221

Manufacturer: Infineon Technologies AG

Trans IGBT Module N-CH 600V 260A 680000mW Automotive 7-Pin 62MM-1 Tray

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Channel Type	N
Configuration	Dual
Typical Collector Emitter Saturation Voltage (V)	1.45
Collector-Emitter Voltage-Max (V)	600
Maximum Power Dissipation (mW)	680000
Maximum Gate Emitter Voltage (V)	±20
Maximum Continuous Collector Current (A)	260
Maximum Gate Emitter Leakage Current (uA)	0.4
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tray
Original Package	62MM-1
Pin Count	7
Standard Package Method	62MM
Terminal Form	Screw
Package Height	30.9
Package Length	106.4
Package Width	61.4
