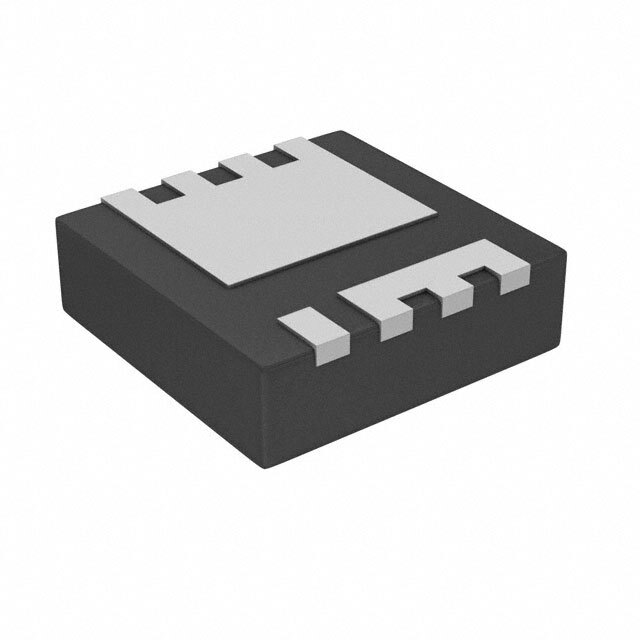

BSZ034N04LS

SKU: 58547

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 40V 19A T/R

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Process Technology	OptiMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	20
Maximum Gate Threshold Voltage (V)	2
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	19
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	3.4@10V
Typical Gate Charge @ Vgs (nC)	13@4.5V
Typical Gate Charge @ 10V (nC)	25
Typical Input Capacitance @ Vds (pF)	1800@20V
Maximum Power Dissipation (mW)	2100
Typical Fall Time (ns)	3
Typical Rise Time (ns)	4
Typical Turn-Off Delay Time (ns)	19
Typical Turn-On Delay Time (ns)	4
Operating Temperature-Min	-55
Operating Temperature-Max	150
