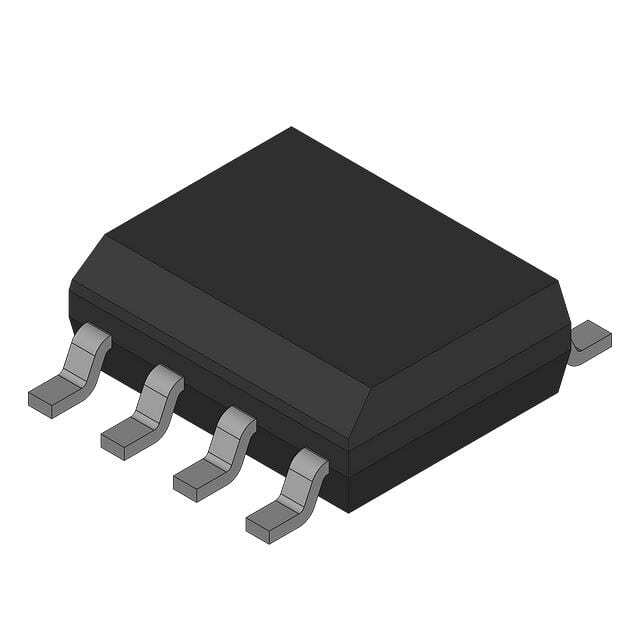

BSO301SP

SKU: 102932

Manufacturer: Infineon Technologies AG

Trans MOSFET P-CH 30V 12.6A 8-Pin DSO

760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	OptiMOS
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	12.6
Maximum Drain Source Resistance (mOhm)	8@10V
Typical Gate Charge @ Vgs (nC)	102@10V
Typical Gate Charge @ 10V (nC)	102
Typical Input Capacitance @ Vds (pF)	4430@25V
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	110
Typical Rise Time (ns)	22
Typical Turn-Off Delay Time (ns)	130
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	DSO
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.47
Package Length	4.9
Package Width	3.94
PCB changed	8
