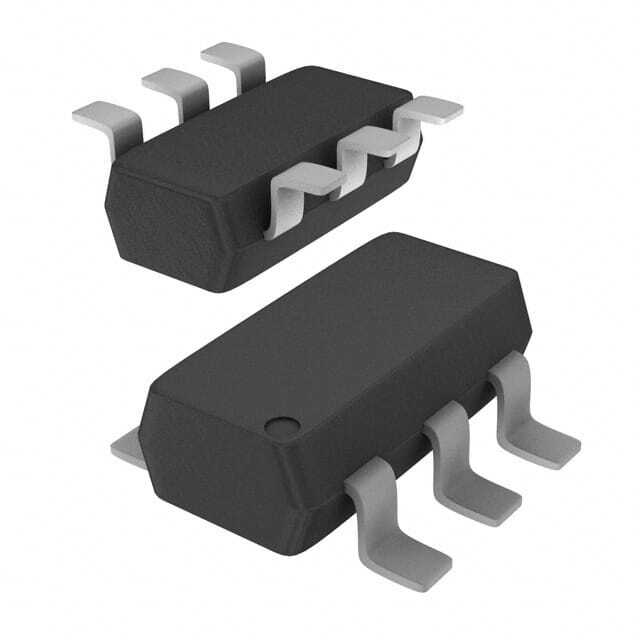

BSL211SP

SKU: 88778

Manufacturer: Infineon Technologies AG

Trans MOSFET P-CH 20V 4.7A Automotive 6-Pin TSOP T/R

119370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Product Category	Small Signal
Configuration	Single Quad Drain
Process Technology	OptiMOS-P
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1.2
Maximum Continuous Drain Current (A)	4.7
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	67@4.5V
Typical Gate Charge @ Vgs (nC)	8.3@4.5V
Typical Input Capacitance @ Vds (pF)	654@15V
Maximum Power Dissipation (mW)	2000
Typical Fall Time (ns)	23.3
Typical Rise Time (ns)	13.9
Typical Turn-Off Delay Time (ns)	25
Typical Turn-On Delay Time (ns)	8.7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOP
Original Package	TSOP
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.9
Package Width	1.6
PCB changed	6
