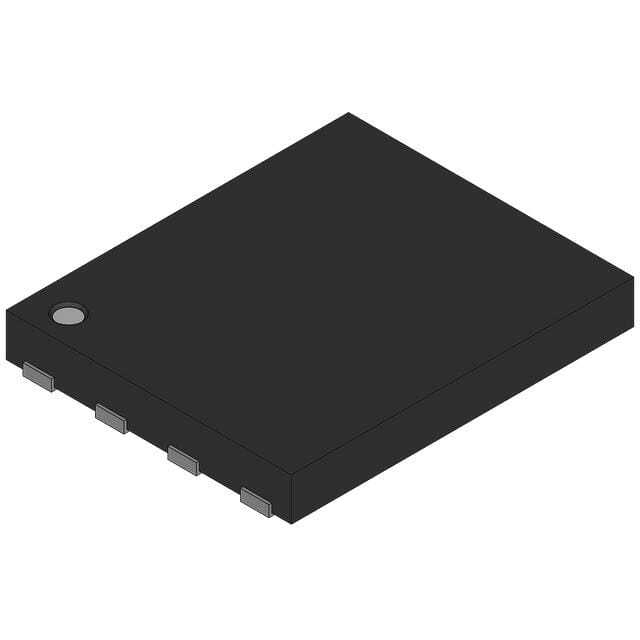

BSC042NE7NS3G

SKU: 74696

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 75V 19A Automotive 8-Pin TDSON EP T/R

14830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Process Technology	OptiMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	75
Maximum Gate Source Voltage (V)	±20
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	19
Maximum Drain Source Resistance (mOhm)	4.2@10V
Typical Gate Charge @ Vgs (nC)	52@10V
Typical Gate Charge @ 10V (nC)	52
Typical Input Capacitance @ Vds (pF)	3600@37.5V
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	9
Typical Rise Time (ns)	17
Typical Turn-Off Delay Time (ns)	34
Typical Turn-On Delay Time (ns)	14
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SON
Original Package	TDSON EP
Terminal Form	Surface Mount
Package Height	1
Package Length	5.15
Package Width	5.9
PCB changed	8
