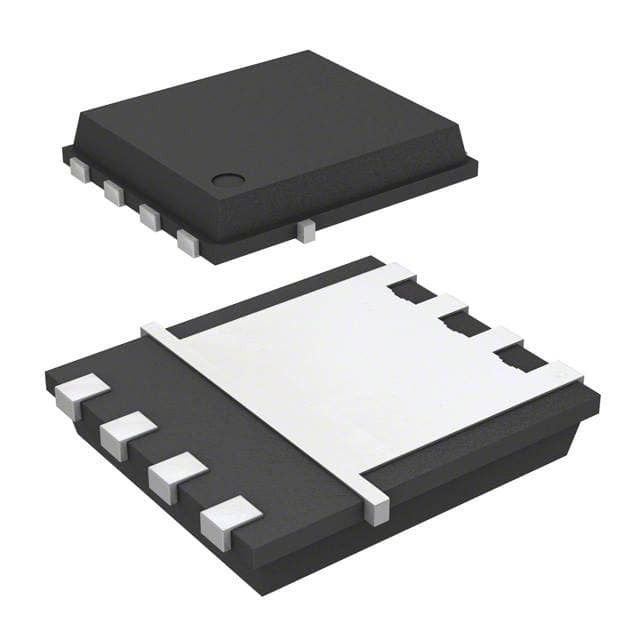

BSC007N04LS6

SKU: 150460

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 40V 48A 8-Pin TDSON EP T/R

480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	20
Maximum Continuous Drain Current (A)	48
Maximum Drain Source Resistance (mOhm)	0.7@10V
Typical Gate Charge @ Vgs (nC)	94@10V
Typical Gate Charge @ 10V (nC)	94
Typical Input Capacitance @ Vds (pF)	6500@20V
Maximum Power Dissipation (mW)	3000
Typical Fall Time (ns)	13
Typical Rise Time (ns)	6
Typical Turn-Off Delay Time (ns)	40
Typical Turn-On Delay Time (ns)	8
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	TDSON EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	1
Package Length	5.15
Package Width	5.9
