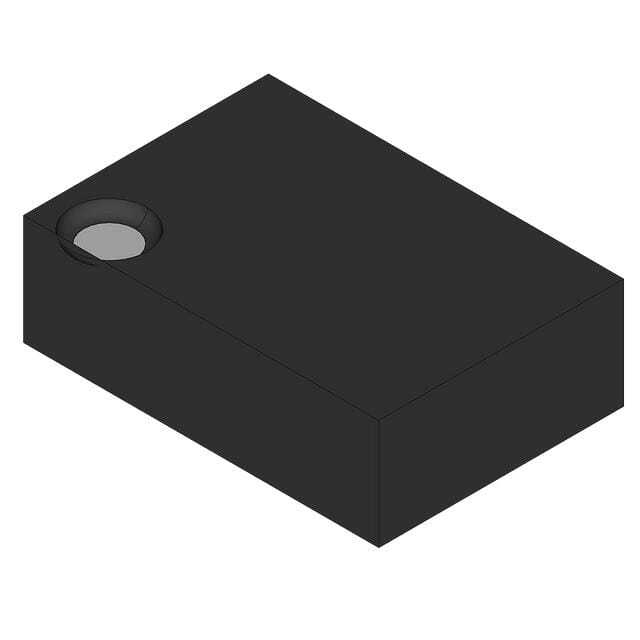

BGA615L7E6327

SKU: 67666

Manufacturer: Infineon Technologies AG

GPS Amp Single Low Noise 1.575GHz 3.2V 7-Pin TSLP T/R

1110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Manufacturer Type	Low Noise Amplifier
Product Category	Chip
Number of Channels per Chip	1
Process Technology	SiGe
Maximum Operating Frequency (MHz)	1575(Typ)
Maximum Gain (dB)	18(Typ)@1575MHz
Typical Noise Figure (dB)	0.9@1575MHz
Maximum Reverse Isolation (dB)	35(Typ)@1575MHz
Maximum Input Return Loss (dB)	13(Typ)@1575MHz
Maximum Output Return Loss (dB)	15(Typ)@1575MHz
Minimum Single Supply Voltage (V)	2.4
Typical Single Supply Voltage (V)	2.8
Maximum Single Supply Voltage (V)	3.2
Maximum Supply Current (mA)	5.6(Typ)@2.8V
Power Supply Type	Single
Maximum Power Dissipation (mW)	36
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TSLP
Pin Count	7
Standard Package Method	TSLP
Terminal Form	Surface Mount
Package Height	0.45(Max)
Package Length	2
Package Width	1.3
