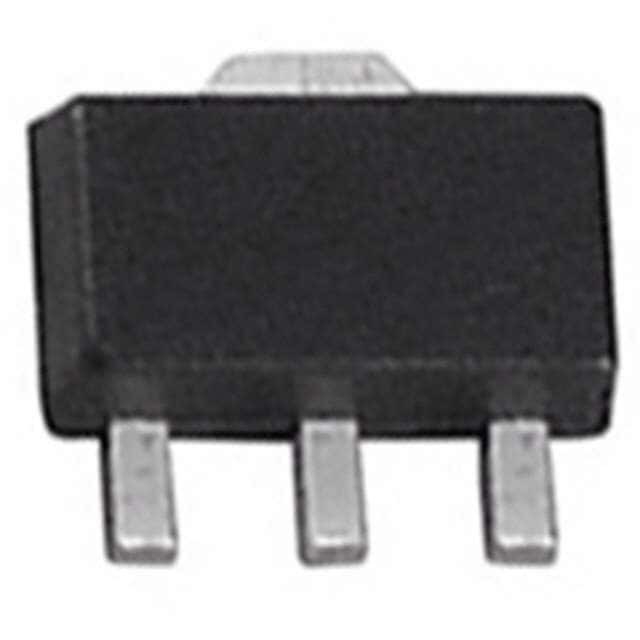

BCV29E6327

SKU: 150454

Manufacturer: Infineon Technologies AG

Trans Darlington NPN 30V 0.5A 1000mW Automotive 4-Pin(3+Tab) SOT-89 T/R

2500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	NPN
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	30
Collector Base Voltage-Max (V)	40
Maximum Emitter Base Voltage (V)	10
Maximum Base Emitter Saturation Voltage (V)	1.5@0.1mA@100mA
Maximum Continuous DC Collector Current (A)	0.5
Maximum Collector Cut-Off Current (uA)	0.1
Typical Current Gain Bandwidth (MHz)	150
Maximum Collector-Emitter Saturation Voltage (V)	1@0.1mA@100mA
Minimum DC Current Gain	4000@0.1mA@1V
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	4
Original Package	SOT-89
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.5
Package Width	2.5
PCB changed	3
