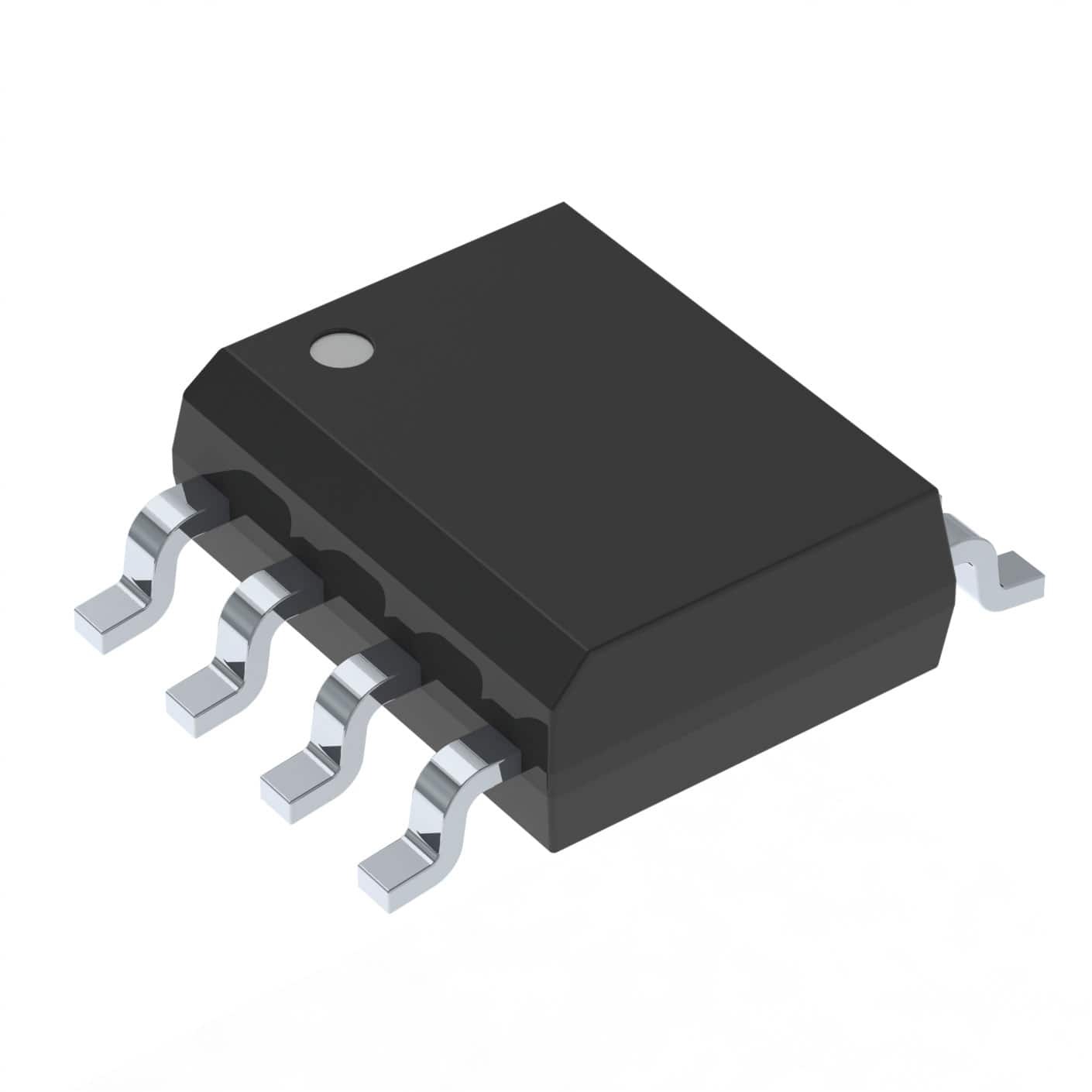

AUIRS2124S

SKU: 100758

Manufacturer: Infineon Technologies AG

Driver 600V 1-OUT High Side Non-Inv Automotive 8-Pin SOIC N Tube

2850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Driver Type	High Side
Driver Configuration	Non-Inverting
Number of Drivers	1
Type	IGBT
Number of Outputs	1
Maximum Rise Time (ns)	200
Maximum Fall Time (ns)	200
Maximum Propagation Delay Time (ns)	240
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	20
Typical Input Low Threshold Voltage (V)	7(Max)
Typical Input High Threshold Voltage (V)	14(Min)
Reference Voltage (V)	600(Max)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
