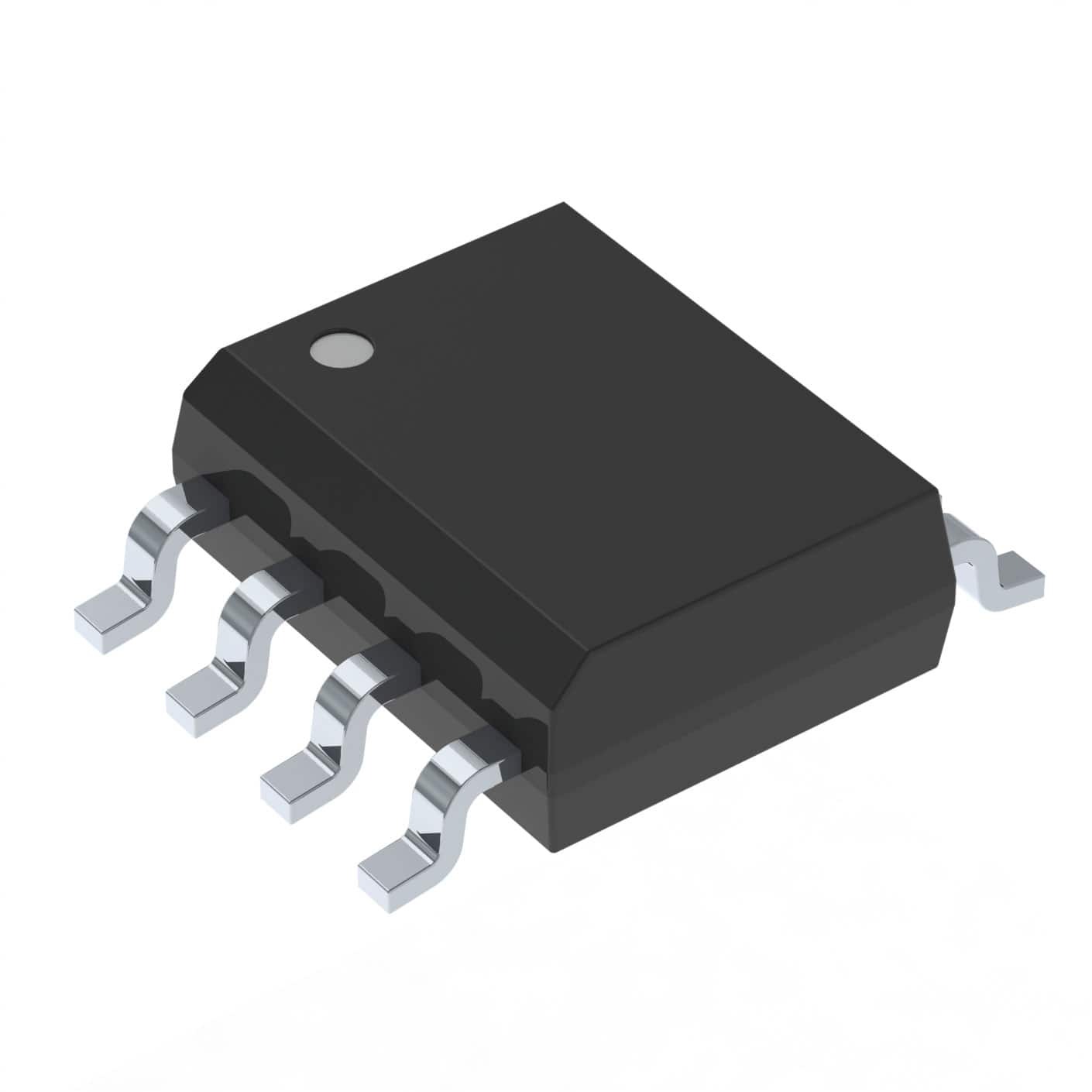

AUIRS20161S

SKU: 67556

Manufacturer: Infineon Technologies AG

Driver 150V 0.5A 1-OUT High Side Automotive 8-Pin SOIC Bulk/Tube

2840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Driver Type	High Side
Number of Drivers	1
Type	MOSFET
Number of Outputs	1
Maximum Rise Time (ns)	500
Maximum Fall Time (ns)	500
Maximum Operating Frequency (kHz)	200
Maximum Propagation Delay Time (ns)	350
Input Logic Compatibility	5V
Operating Supply Voltage-Min (V)	4.4
Operating Supply Voltage-Max (V)	6.5
Maximum Supply Current (mA)	0.4
Reference Voltage (V)	150(Max)
Peak Output Current (A)	0.5(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Special Features	Under Voltage Lockout
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
