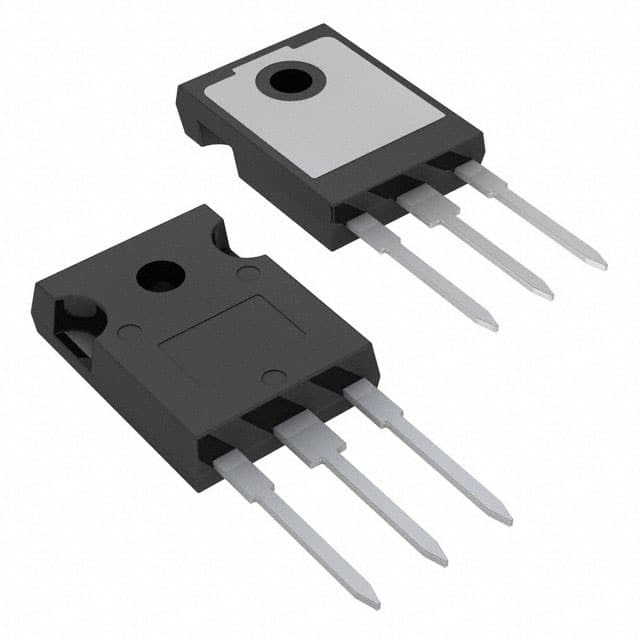

AUIRGP4062D

SKU: 114945

Manufacturer: Infineon Technologies AG

Trans IGBT Chip N-CH 600V 48A 250000mW Automotive 3-Pin(3+Tab) TO-247AC Tube

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	Yes
PPAP	Unknown
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	1.6
Maximum Continuous Collector Current (A)	48
Maximum Gate Emitter Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	250000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-247
Original Package	TO-247AC
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
