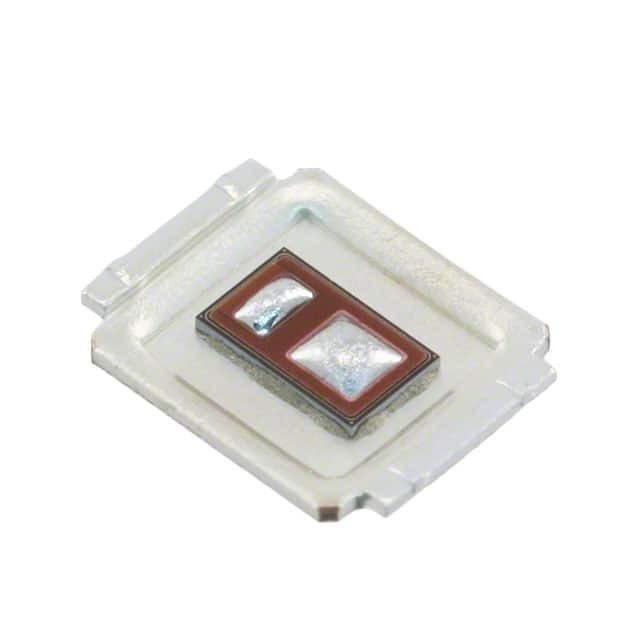

AUIRF7665S2TR

SKU: 18051

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH Si 100V 4.1A Automotive 6-Pin Direct-FET SB T/R

1850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Quad Drain
Process Technology	DirectFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	4.1
Maximum Drain Source Resistance (mOhm)	62@10V
Typical Gate Charge @ Vgs (nC)	8.3@10V
Typical Gate Charge @ 10V (nC)	8.3
Typical Input Capacitance @ Vds (pF)	515@25V
Maximum Power Dissipation (mW)	2400
Typical Fall Time (ns)	3.6
Typical Rise Time (ns)	6.4
Typical Turn-Off Delay Time (ns)	7.1
Typical Turn-On Delay Time (ns)	3.8
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	Direct-FET SB
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.49(Max)
Package Length	3.95(Max)
Package Width	3.95(Max)
PCB changed	6
