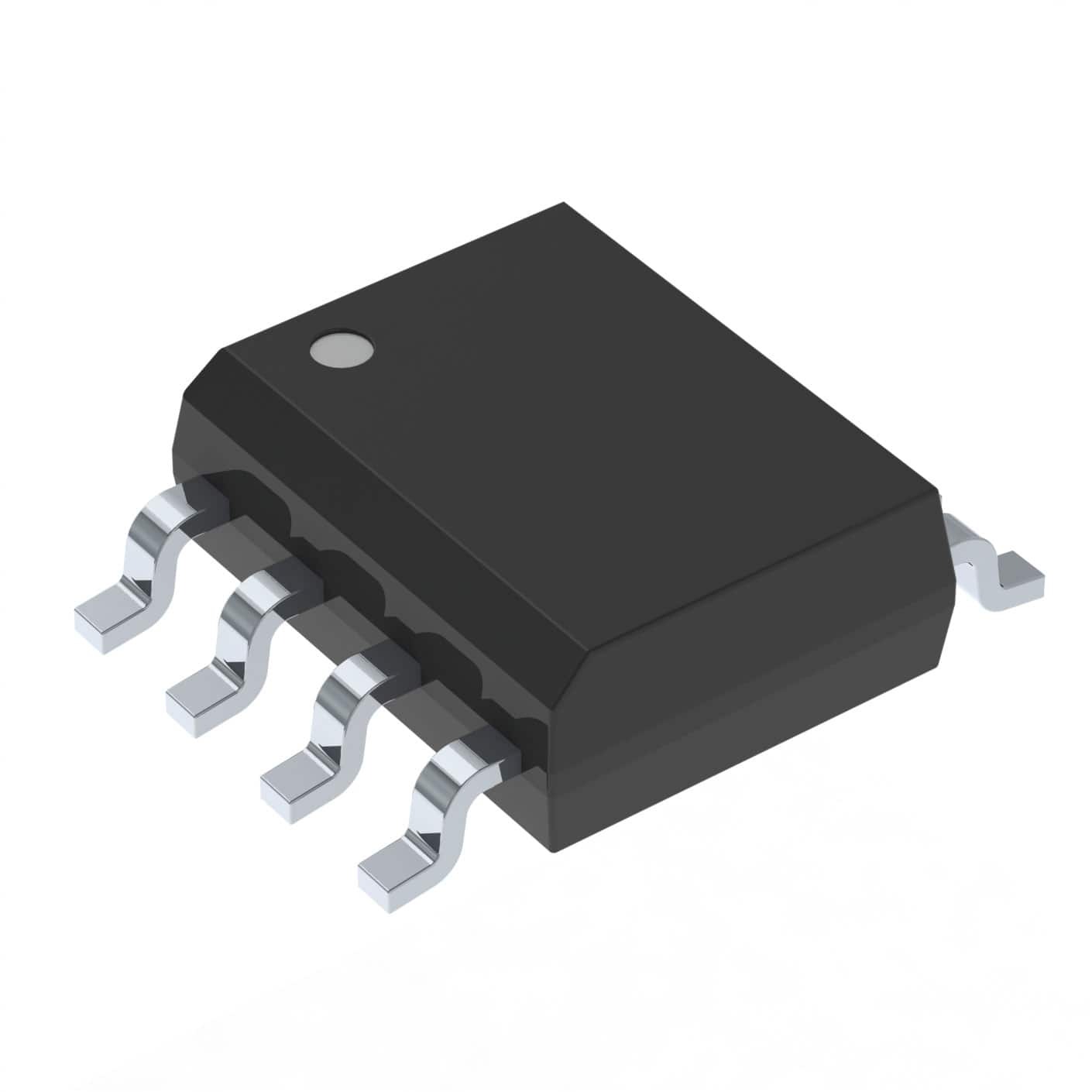

AUIRF7319Q

SKU: 86663

Manufacturer: Infineon Technologies AG

Trans MOSFET N/P-CH Si 30V 6.5A/4.9A Automotive 8-Pin SOIC T/R

20770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Body Material	Si
Configuration	Dual Dual Drain
Process Technology	HEXFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	6.5@N Channel
Maximum Drain Source Resistance (mOhm)	29@10V@N Channel
Typical Gate Charge @ Vgs (nC)	23@10V@P Channel
Typical Gate Charge @ 10V (nC)	22@N Channel
Typical Input Capacitance @ Vds (pF)	650@25V@N Channel
Maximum Power Dissipation (mW)	2000
Typical Fall Time (ns)	32@P Channel
Typical Rise Time (ns)	13@P Channel
Typical Turn-Off Delay Time (ns)	26@N Channel
Typical Turn-On Delay Time (ns)	13@P Channel
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
