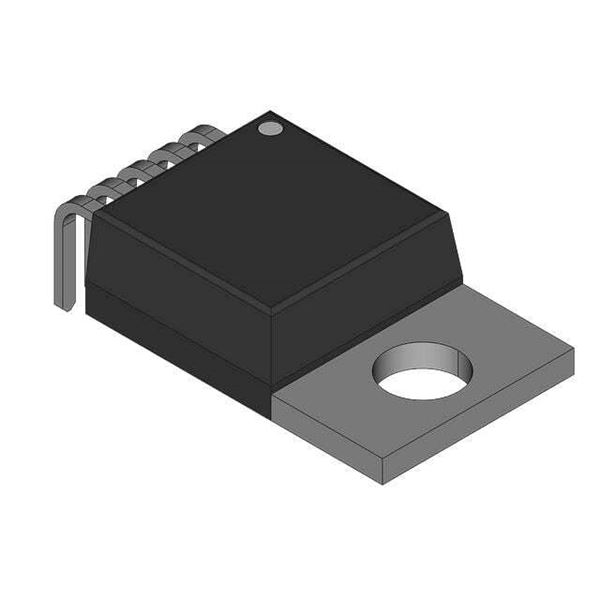

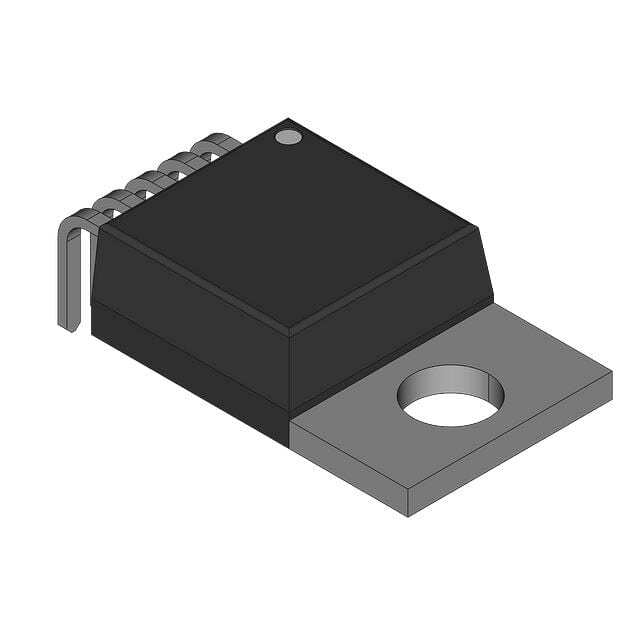

AUIPS7091

SKU: 124091

Manufacturer: Infineon Technologies AG

Current Limit SW 1-IN 1-OUT 6V to 28V 8A Automotive 5-Pin(5+Tab) TO-220 Tube

3320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Number of Inputs	1
Number of Outputs	1
Maximum Output Current (A)	8
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	28
Switch On Resistance (mOhm)	80
Maximum Power Dissipation (mW)	1250
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220
Pin Count	5
Terminal Form	Through Hole
Package Height	9.02(Max)
Package Length	10.67(Max)
Package Width	4.83(Max)
PCB changed	5
