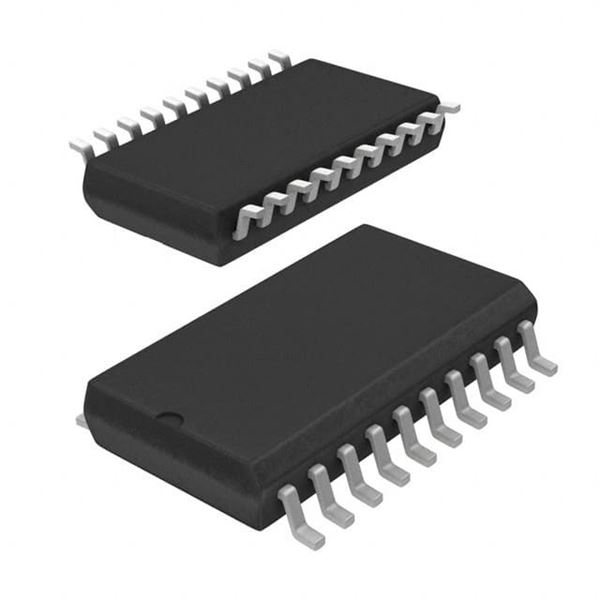

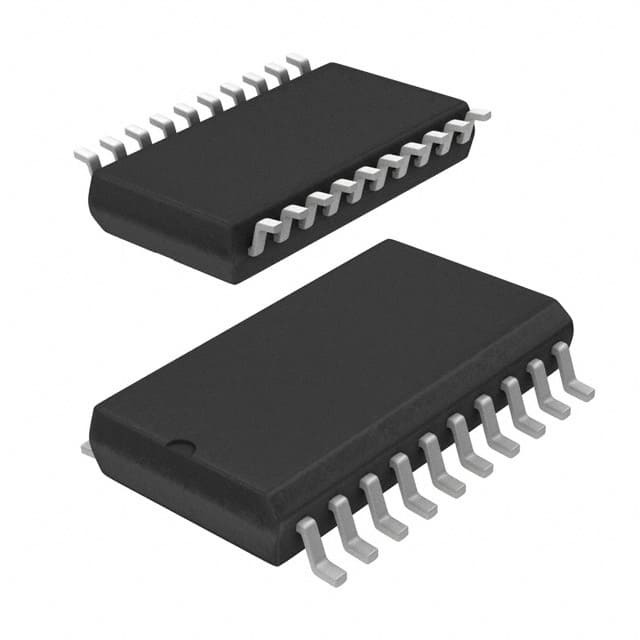

1ED020I12FA2

SKU: 7773

Manufacturer: Infineon Technologies AG

Driver 2A 1-OUT High Side/Low Side Half Brdg Inv/Non-Inv Automotive 20-Pin DSO T/R

6710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Driver Type	High Side
Driver Configuration	Inverting
Bridge Type	Half Bridge
Number of Drivers	1
Type	IGBT
Number of Outputs	1
Maximum Rise Time (ns)	400(Typ)
Maximum Fall Time (ns)	350(Typ)
Maximum Propagation Delay Time (ns)	195(Typ)
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	13
Typical Operating Supply Voltage (V)	15
Operating Supply Voltage-Max (V)	20
Typical Input Low Threshold Voltage (V)	3.8
Typical Input High Threshold Voltage (V)	4.1
Peak Output Current (A)	2(Typ)
Maximum Power Dissipation (mW)	700
Operating Temperature-Min	-40
Operating Temperature-Max	105
Special Features	Under Voltage Lockout
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	DSO
Terminal Form	Surface Mount
Package Height	2.45
Package Length	12.8
Package Width	7.6
PCB changed	20
