SS41

SKU: 28925

Manufacturer: Honeywell

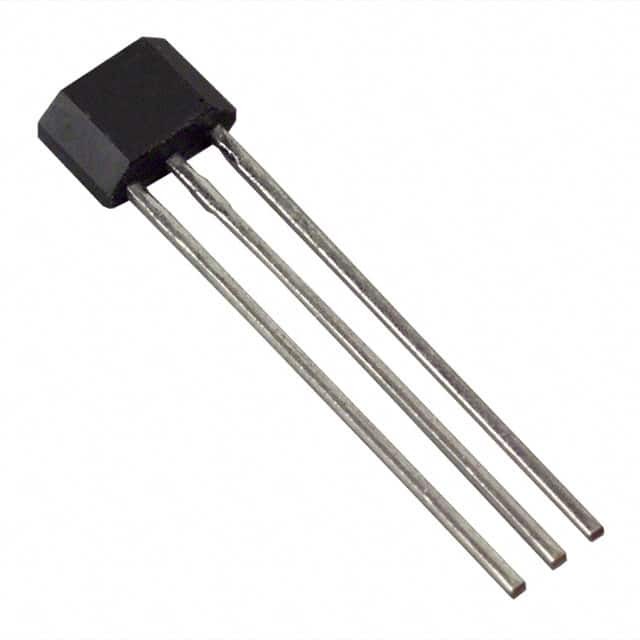

Hall Effect Sensor 20mA Bipolar 5V/9V/12V/15V/18V 3-Pin Bag

19140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Magnetic Type	Bipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	-40(Typ)
Maximum Magnetic Sensor Operating Point (Gs)	40(Typ)
Typical Output Fall Time (us)	0.5
Maximum Output Current (mA)	20
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	24
Maximum Supply Current (uA)	15000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Bag
Pin Count	3
Terminal Form	Through Hole
Package Height	3
Package Length	4.1
Package Width	1.5
PCB changed	3
