SMD2440-021

SKU: 66373

Manufacturer: Honeywell

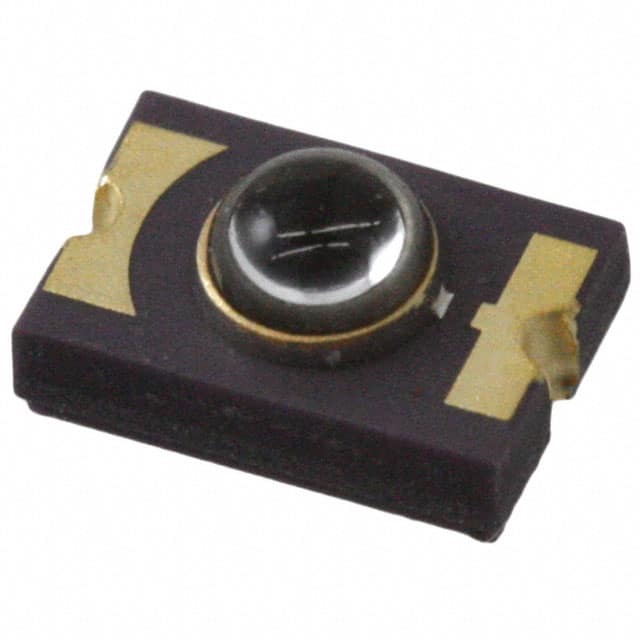

Phototransistor Module 880nm 2-Pin CSMD T/R

3570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.40.70.80
Automotive	No
PPAP	No
Type	Module
Phototransistor Type	Phototransistor
Lens Shape Type	Domed
Number of Channels per Chip	1
Polarity	NPN
Viewing Orientation	Top View
Peak Wavelength (nm)	880
Maximum Rise Time (ns)	15000(Typ)
Maximum Fall Time (ns)	15000(Typ)
Maximum Light Current (uA)	4000
Maximum Dark Current (nA)	100
Maximum Emitter-Collector Voltage (V)	5
Collector-Emitter Voltage-Max (V)	30
Maximum Collector-Emitter Saturation Voltage (V)	0.4
Maximum Power Dissipation (mW)	125
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SMD
Original Package	CSMD
Pin Count	2
Terminal Form	Surface Mount
Package Height	2.1
Package Length	3.8
Package Width	2.5
PCB changed	2
