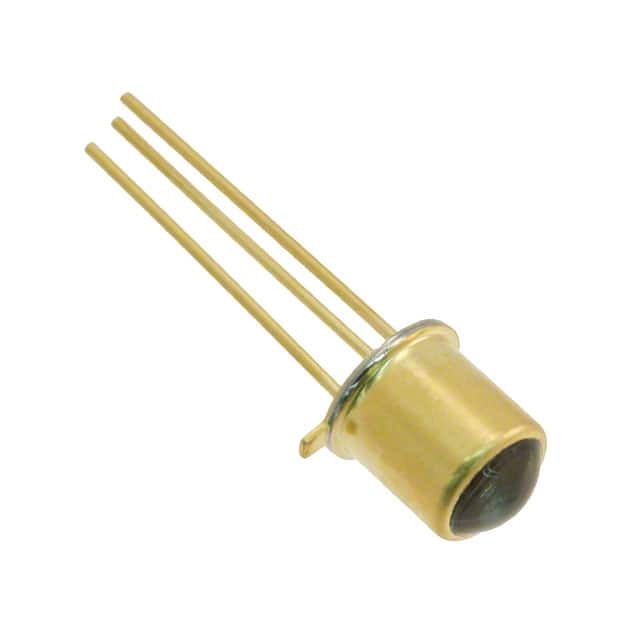

SD5421-002

SKU: 23820

Manufacturer: Honeywell

Photodiode PIN Chip 3-Pin TO-46

3070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.2.c
Part Status	Obsolete
HTS	8536.41.00.60
Automotive	No
PPAP	No
Type	Chip
Photodiode Type	PIN
Lens Type	Glass
Photodiode Body Material	Si
Polarity	Forward
Maximum Rise Time (ns)	15
Maximum Fall Time (ns)	15
Maximum Light Current (uA)	40(Min)
Maximum Dark Current (nA)	20
Maximum Power Dissipation (mW)	150
Operating Temperature-Min	-55
Operating Temperature-Max	125
Standard Package Method	TO-206-AB
Original Package	TO-46
Pin Count	3
Diameter	5.56(Max)
Terminal Form	Through Hole
Package Height	6.27(Max)
PCB changed	3
