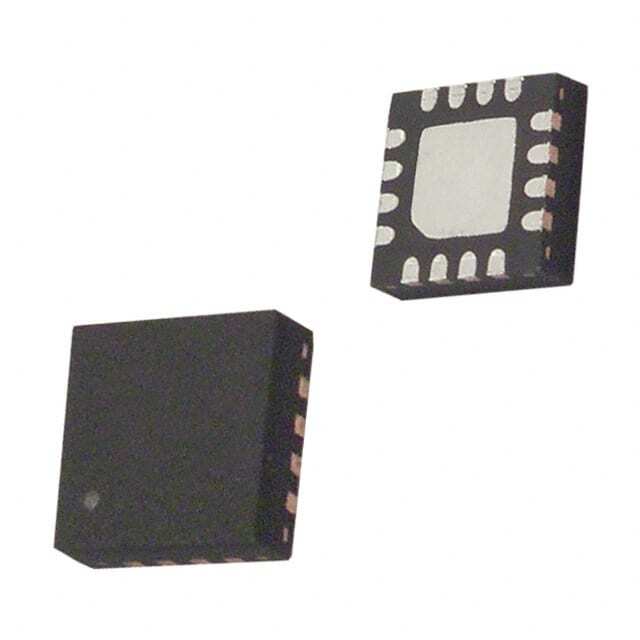

HMC1052L

SKU: 132218

Manufacturer: Honeywell

Dimensional Magnetoresistive Sensor 2 Axis 6Gs Magnetic Field 16-Pin PLCC T/R

1090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8543.70.99.60
Automotive	Unknown
Type	Dimensional
Module/IC Classification	IC
Number of Bridge per Chip	2
Number of Axis	2
Maximum Magnetic Field	6Gs
Maximum Bridge Resistance (kOhm)	1.5
Maximum Sensitivity	1.2(mV/V/Gs)
Output Type	Analog
Operating Supply Voltage-Max (V)	20
Typical Operating Supply Voltage (V)	3
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	PLCC
Pin Count	16
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3
Package Width	3
PCB changed	16
