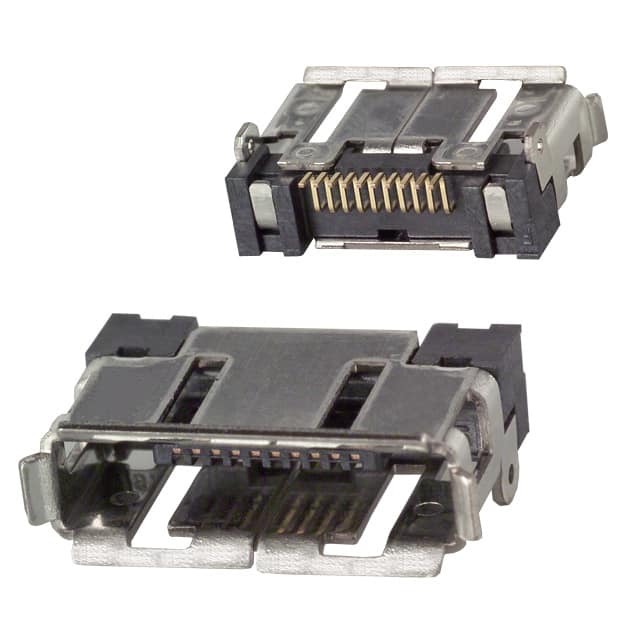

ST60-10P

SKU: 135085

Manufacturer: Hirose Electric

Conn Interface RCP 10 POS 0.5mm Solder RA SMD 10 Terminal 1 Port T/R

18360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.40.51
Automotive	No
PPAP	No
Type	Interface
Gender	RCP
Number of Contacts	10
Number of Terminals	10
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	0.5
Body Orientation	Right Angle
Current Rating-Max(A)	1
Voltage Rating-Max	100VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	60
Operating Temperature-Min	-30
Operating Temperature-Max	80
Mating Cycle (Cycles)	10000
Packing Method	Tape and Reel
Length (mm)	11.5
Depth (mm)	7.58
Height (mm)	4
Contact Plating	Gold
Contact Body Material	Copper Alloy
