FX12B-60P-0.4SV

SKU: 132142

Manufacturer: Hirose Electric

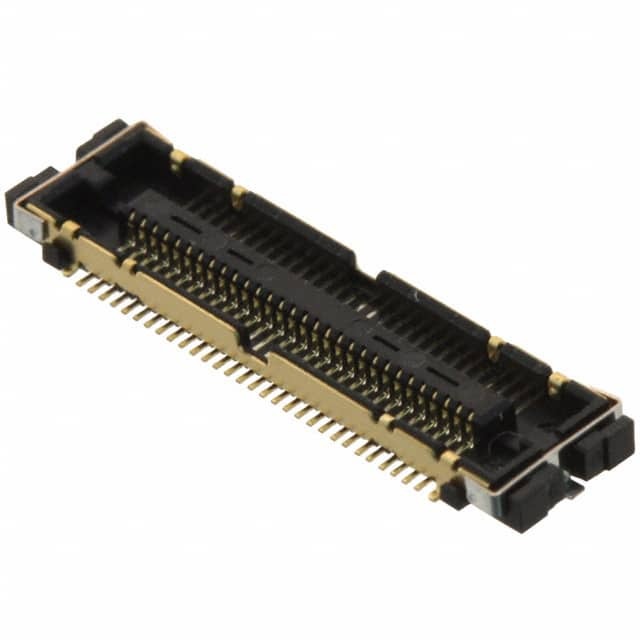

Conn Board to Board HDR 60 POS 0.4mm Solder ST SMD T/R

1290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Board to Board
Gender	HDR
Number of Contacts	60
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.4
Body Orientation	Straight
Current Rating-Max(A)	0.3
Voltage Rating-Max	30VAC
Maximum Contact Resistance (mOhm)	100
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	30
Packing Method	Tape and Reel
Length (mm)	17.79
Height (mm)	1.34
