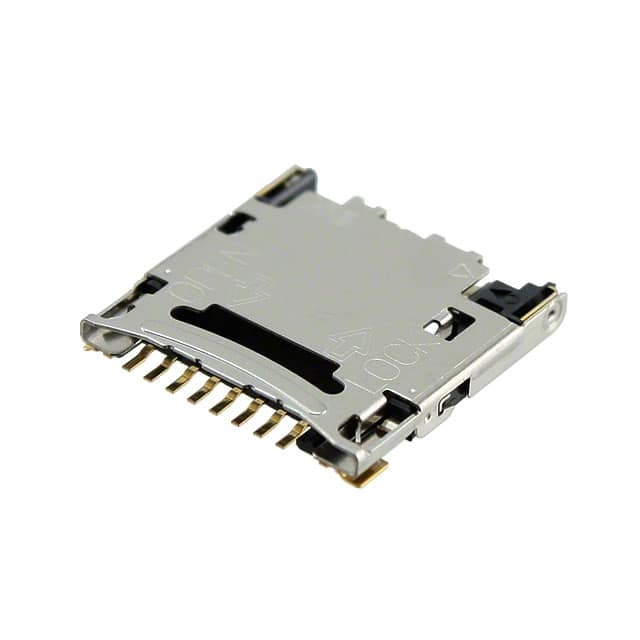

DM3CS-SF

SKU: 25615

Manufacturer: Hirose Electric

Conn Micro SD Card HDR 8 POS 1.1mm Solder RA SMD microSD™ 0.5A T/R

2970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Micro SD Card
Gender	HDR
Number of Contacts	8
Number of Rows	1
Terminal Pitch (mm)	1.1
Termination Method	Solder
Body Orientation	Right Angle
Terminal Plating	Gold
Current Rating-Max(A)	0.5
Voltage Rating-Max	125VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	100
Operating Temperature-Min	-25
Operating Temperature-Max	85
Mating Cycle (Cycles)	5000
PCB Mounting Side	Normal
Packing Method	Tape and Reel
Product Weight (g)	0.51
Length (mm)	13.8
Depth (mm)	14.1
Height (mm)	1.83
Tradename	microSD™
