M80-8511642

SKU: 122639

Manufacturer: Harwin

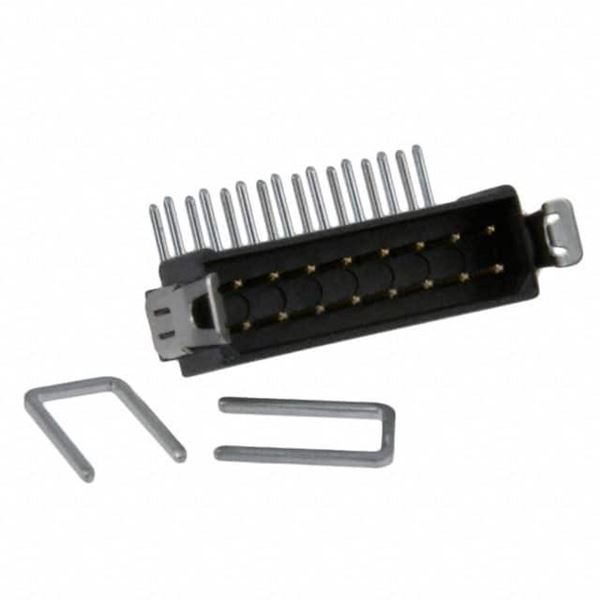

Conn Datamate M 16 POS 2mm Solder RA Thru-Hole Tube

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Datamate
Gender	M
Number of Contacts	16
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Right Angle
Row Spacing (mm)	2
Current Rating-Max(A)	3
Voltage Rating-Max	800VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	25
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	500
Packing Method	Tube
Length (mm)	20.1
Depth (mm)	8.4
Height (mm)	5.96
