M80-8502642

SKU: 23578

Manufacturer: Harwin

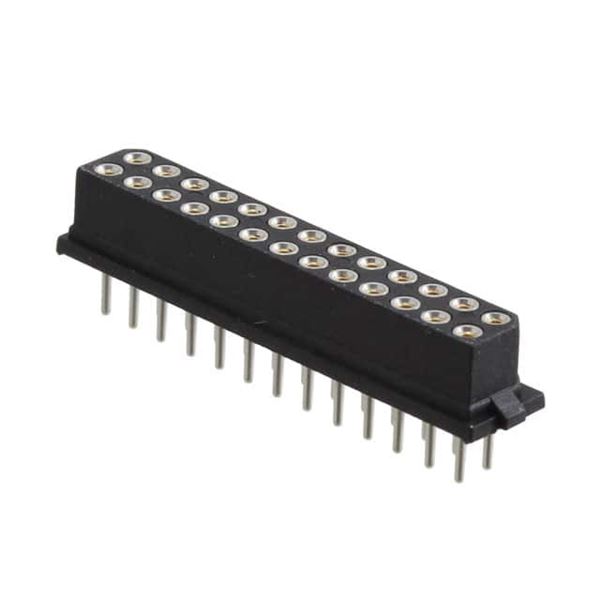

Conn Datamate F 26 POS 2mm Solder ST Thru-Hole Tube

3370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Datamate
Gender	F
Number of Contacts	26
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Straight
Row Spacing (mm)	2
Current Rating-Max(A)	3
Voltage Rating-Max	800VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	25
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	500
Packing Method	Tube
Product Weight (g)	1.748
Length (mm)	29.15
Depth (mm)	5.5
Height (mm)	5.2
