M80-4601042

SKU: 66094

Manufacturer: Harwin

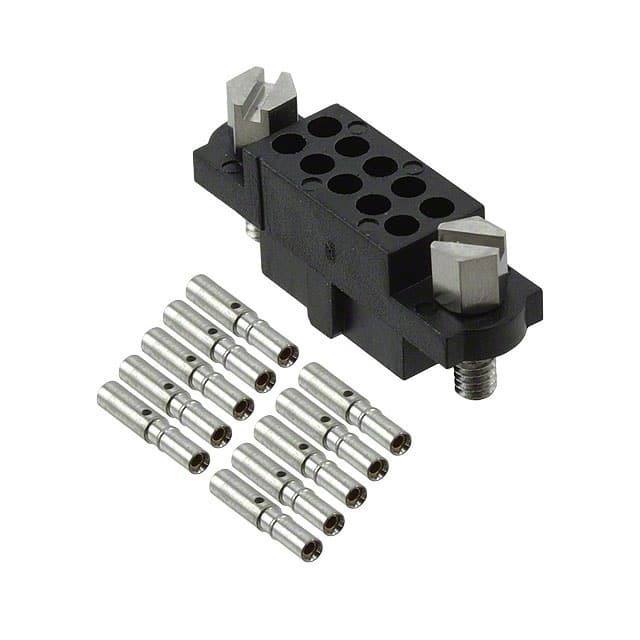

Conn Datamate F 10 POS 2mm Crimp ST Top Entry Cable Mount Bulk/Loose

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Datamate
Gender	F
Number of Contacts	10
Number of Rows	2
Termination Method	Crimp
Terminal Pitch (mm)	2
Body Orientation	Straight
Polarization Type	Center Key
Row Spacing (mm)	2
Current Rating-Max(A)	3
Voltage Rating-Max	800VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	25
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	500
Packing Method	Loose
Product Weight (g)	1.732
Length (mm)	20
Depth (mm)	5.5
Height (mm)	7.55
