M80-4002042

SKU: 122640

Manufacturer: Harwin

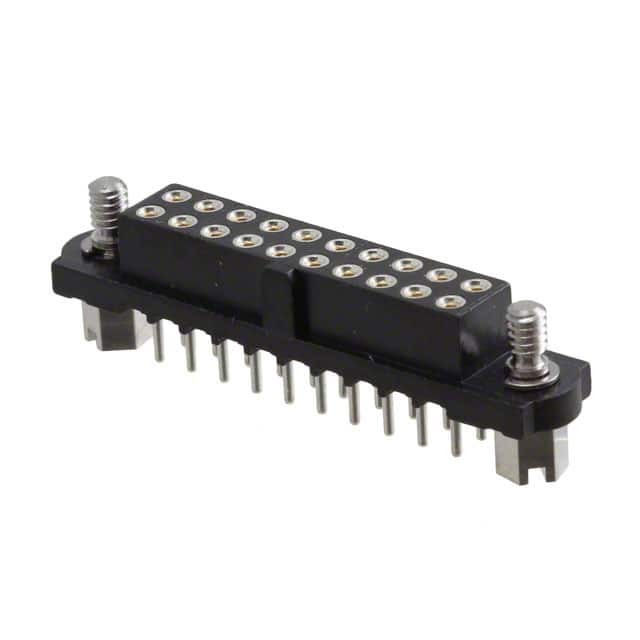

Conn Datamate F 20 POS 2mm Solder ST Thru-Hole Tube

2050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Datamate
Gender	F
Number of Contacts	20
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Straight
Polarization Type	Center Key
Row Spacing (mm)	2
Current Rating-Max(A)	3
Voltage Rating-Max	120VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	25
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	500
Packing Method	Tube
Product Weight (g)	2.098
Length (mm)	30
Depth (mm)	5.55
Height (mm)	5.2
